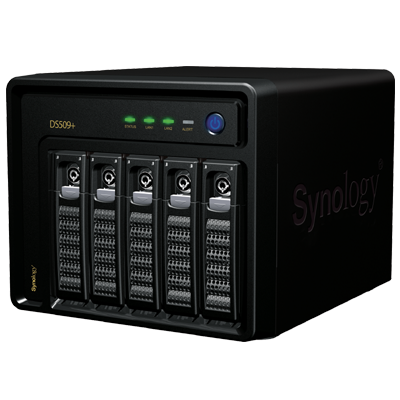

Synology DS509+ all in one NAS
Orta ve Büyük Ölçekli Şirketler için Yüksek Performanslı 5 adet SATA Yuvalı NAS Sunucusu. 1.06GHz CPU, 1GB RAM, 5 adet Internal 3,5" SATAII HotSwappable HDD Yuvası, 2 adet USB, 1 adet eSATA Arayüz, 2 adet Link Aggregation destekli Gigabit Ethernet,
Orta ve Büyük Ölçekli Şirketler için Yüksek Performanslı 5 adet SATA Yuvalı NAS Sunucusu. 1.06GHz CPU, 1GB RAM, 5 adet Internal 3,5" SATAII HotSwappable HDD Yuvası, 2 adet USB, 1 adet eSATA Arayüz, Maksimum 10 adet IP Kamera Desteği, 2 adet Link Aggregation destekli Gigabit Ethernet, FTP, Kriptolanmış Ağ Yedekleme, EXT3 desteği, Harici Disk için FAT, NTFS desteği, maksimum 2048 adet kullanıcı ve 256 adet kullanıcı grubu tanımı, 256 adet paylaşım klasörü, 512 adet aynı anda bağlantı desteği, maksimum 2 adet yazıcı paylaşım desteği. Türkçe kolay web arayüzü. Windows ADS ve DataReplicator 3 desteği. Domain kullanıcıları Samba/AFP/FTP ile girebilir. JBOD, Raid 0/1/5/5+Spare/6 desteği. Synology DX5 ile kapasite artırma desteği.
|
Hardware
· CPU Clock Rate: 1.06GHz
· Memory: 1GB
· Internal HDD1: 3.5" SATA(II) X5
· External HDD Interface: USB 2.0 port X2, eSATA port X1
· Size: 203mm X 242mm X 177mm
· Weight: 4.75kg
· LAN: Gigabit X2
· Fan: X2(80mmX80mm)
· Noise Level:2 26dB(A)
· Power Recovery
· AC Input Power Voltage: 100V to 240V
· Power Frequency: 50Hz to 60Hz, Single Phase
· Operating Temperature: 5°C to 35°C (40°F to 95°F)
· Storage Temperature: -10°C to 70°C (15°F to 155°F)
· Relative Humidity: 5% to 95%RH
· Maximum Operating Altitude: 10,000 feet
Power Consumption3
· 69W(Access);
30W(Hibernation) Certification
· FCC Class B, CE Class B, BSMI Class B
Networking Protocols
· CIFS
· AFP (3.1)
· FTP
· NFS
· Telnet/SSH
Windows ADS Domain Integration
· ADS Support
· Domain users login via Samba/AFP/FTP
· Synology Data Replicator 3 for Domain Users
Security
· "FTP over SSL (explicit)" or "FTP over TLS (explicit)"
· FTP Auto-Block
· Encrypted Network Backup
· Encrypted rsync
· HTTPS Connection
File System
· EXT3
· FAT (External Disk Only)
· NTFS (External Disk Read Only)
File Sharing
· Max User Accounts: 2,048
· Max Groups: 256
· Max Shared Folder: 256
· Max Concurrent Connections(SAMBA, FTP, AFP): 512
Utilities
· Synology Assistant
· Synology Data Replicator 3
· Synology Download Redirector
· Add printer wizard
|
Applications
· Surveillance Station 2
· Photo Station 3
· File Station 2
· Audio Station
· Web Station
· PHP/MySQL
· Download Station 2
· iTunes Server
Packages
· Mail Station
· SqueezeCenter
UPnP Multimedia Service Support
· Audio Format: AAC, FLAC, M4A, MP3, Ogg Vorbis, WAV, WMA, WMA VBR, WMA PRO, WMA Lossless
· Video Format: ASF, AVI, DAT, DivX, MP4, MPEG1, MPEG2, MPEG4, VOB, WMV, XviD
· Image Format: BMP, JPG (jpe, jpeg), GIF, ICO, PNG, PSD, TIF (tiff), UFO
· Playlist Format: WPL, M3U
iTunes Server Support
· Audio Format: MP3, M4A, M4P, WAV4, AIF4
· Playlist Format: M3U, WPL
Audio Station Support
· USB Mode: (Audio) AAC, FLAC, M4A, MP3, Ogg Vorbis, WMA, WMA VBR (Playlist) M3U, WPL (Internet Radio) SHOUTcast, Radioio
· Streaming Mode: (Audio) MP3 (Playlist) M3U, WPL
Photo Station 3 Support
· Video Format: ASF, AVI, MPEG1, MPEG4, WMV, XviD, DivX, FLV, DAT5, MP45, MPEG25, RM5, RMVB5, VOB5
· Image Format: BMP, JPG (jpe, jpeg), GIF
Management
· AJAX-based Management UI
· Sub-folder Privileges Setting
· User Home
· Applications privileges Setting
· BitTorrent Port Range Setup
· BitTorrent DHT Support
· CIFS Recycle Bin
· Download Station Bandwidth control
· Download Station Port Range Setup
· Editable HTTP Error Page
· Email Alert Message
· Email Notification for New User
· Package Management
· Link Aggregation
· External HDD Hibernation (eSATA, USB)
· Scheduled Power On/Off
· Firmware Upgrade
· FTP passive port range
· Hide-able Shared Folder
· Internal HDD Hibernation
· Movable Shared Folder
· Removable Default Shared Folder
· System Temperature
· Ez-Internet
· PPPoE
· UPS Management (Over USB 2.0)
· User Quota
· Web-based Download Station 2
|
RAID Management
· Volume Type: Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 5+Spare, RAID 6
· Upgrade from Basic to RAID 1, from Basic to RAID 5, from RAID 1 to RAID 5, from RAID 5 to RAID 5+Spare
· Expand RAID 1, RAID 5, RAID 5+Spare or RAID 6 with Larger Hard Drives
· Expand RAID 5, RAID 5+Spare or RAID 6 by Adding a Hard Drive On The Fly
Backup Solutions
· Network Backup
· Local Backup
· Desktop Backup (using Synology Data Replicator 3)
· 3rd-Party Backup Support
Supported Clients
· Windows 2000 onward
· Mac OS X 10.3 onward
· Linux
Printer Support6
· Max Printer #: 2
· Supported Protocols: LPR, CIFS, AppleTalk
Languages
· English, German, French, Italian, Spanish, Danish, Norwegian, Swedish, Dutch, Russian, Korean, Polish, Traditional Chinese, Simplified Chinese, Portuguese (Brazil), Portuguese (European), Turkish, and Hungarian
Environment
· RoHS Compliant
Package Content
· DS509+ Main Unit
· Installation CD
· Welcome Note
· Assembling Kit
· AC Power Cord
· 2M RJ-45 LAN Cable x 2
___
1. Hard drive not included. 2. FAN only. Measured at 2300~6200RPM, varied among models. More details about dB(A) value, check http://www.quietnoise.com/facts.htm 3. Measured with 5 Seagate 750GB ST3750640NS hard drives. The figures could vary on different environments. 4. The music can be streamed, but the metadata (ex:title, album) may not be indexed on the iTunes. 5. User can click and download the file, but not play it in Photo Station as compressed Flash video. 6. For Mac users, DS509+ supports PostScript USB printers only. 7. 1 free license to install 1 IP camera. Additional licenses can be purchased to expand the license quota. 8. The actual capacity will differ according to volume types. |
