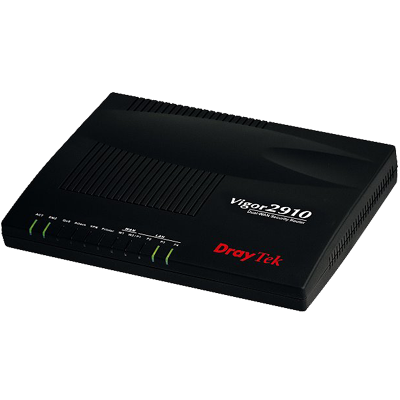

Draytek Vigor 2910 Broadband Router

Draytek Vigor 2910 Broadband Router

Draytek Vigor2910 yeni nesi l2 adet (Dual) WAN portu bulunan Load Balance yapabilen kurumsal kullanıcıların ihtiyaçlarına cevap verebilecek, Security Gateway 'dir. BroadBand (ADSL, KabloModem, Leased Line) Modem arkasında kullanabilirsiniz.

Dual WAN VPN Load Balance Security Router Draytek Vigor2910 yeni nesil iki adet (Dual) WAN portu bulunan Load Balance yapabilen kurumsal kullanıcıların ihtiyaçlarına cevap verebilecek, ilave ve üstün özellikleri olan Security Gateway 'dir. BroadBand (ADSL,Kablo Internet veya Leased Line) Modem arkasında Internet erişiminizin paylaşımını ve Firewall özellikleri ile Ağ güvenliğiniz sağlar. Cihaz üzerinde 32 adet VPN Tünel sonlandırılabilir

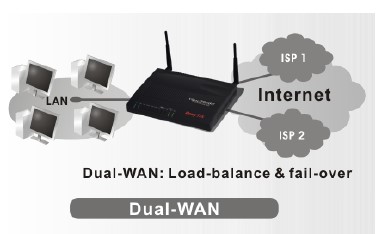

The Vigor2910 series provides a configurable second WAN interface and supports policy-based load-balancing and connection fail-over on dual-WAN interface. Except the QoS function for the original IP layer, it also supports NAT session/bandwidth management which increases the usage efficiency of bandwidth greatly.

It allows users to access Internet and combine the bandwidth of the dual WAN to speed up the transmission through the network. Each WAN port can connect to different ISPs, Even if the ISPs use different technology to provide telecommunication service (such as DSL, Cable modem, etc.). If any connection problem occurred on one of the ISP connections, all the traffic will be guided and switched to the normal communication port for proper operation.

DrayTek supports 3G HSDPA USB Modem via USB port of Vigor2910 series from firmware version V3.0.6 and above. It is a good application for the mobile sharing environment.

1. Dual-WAN

  • Outbound Policy-Based Load-Balance
  • BoD (Bandwidth on Demand)
  • WAN Connection Fail-over

2. WAN Protocol

  • DHCP Client
  • Static IP
  • PPPoE
  • PPTP
  • BPA
  • L2TP

3. Firewall

  • CSM (Content Security Management) for IM/P2P Application
  • Multi-NAT, DMZ Host, Port-Redirection/Open Port
  • Policy-Based IP Packet Filter
  • DoS/DDoS Protection
  • IP Address Anti-Spoofing
  • E-Mail Alert and logging via Syslog
  • Bind IP to MAC Address

4. VPN

  • Up to 32 VPN Tunnels
  • Protocol: PPTP, IPSec, L2TP, L2TP over IPSec
  • Encryption: AES, MPPE and Hardware-Based DES/3DES
  • Authentication: MD5, SHA-1
  • IKE Authentication: Pre-shared Key and Digital Signature (X.509)
  • LAN-to-LAN, Teleworker-to-LAN
  • DHCP over IPSec
  • NAT-Traversal (NAT-T)
  • Dead Peer Detection (DPD)
  • VPN Pass-Through

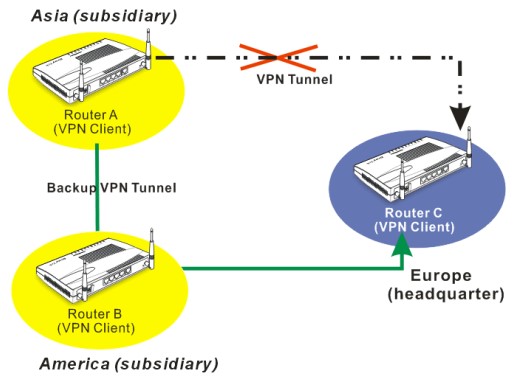

  • VPN Backup

5. USB

  • 3G USB Modem(3G only can act as WAN2)
  • USB Printer

6. Bandwidth Management

  • Class-based Bandwidth Guarantee by User-Defined Traffic Categories
  • DiffServ Code Point Classifying
  • 4-level Priority for Each Direction (Inbound/Outbound)
  • Bandwidth Borrowed
  • Bandwidth/Session Limitation

7. Network Management

  • Support TR-069
  • Web-Based User Interface (HTTP/HTTPS)
  • Quick Start Wizard
  • CLI (Command Line Interface) / Telnet/SSH*
  • Administration Access Control
  • Configuration Backup/Restore
  • Built-in Diagnostic Function
  • Firmware Upgrade via TFTP/FTP
  • Logging via Syslog
  • SNMP Management with MIB-II

8. Content Filter

  • URL Keyword Blocking (White list and Black list)
  • Java Applet, Cookies, Active X, Compressed / Executable / Multimedia File Blocking
  • Web Content Filter
  • Time Schedule Control

9. Network Features

  • DHCP Client/Relay/Server
  • Dynamic DNS
  • NTP Client
  • Call Scheduling
  • RADIUS Client
  • DNS Cache/Proxy
  • UPnP
  • Port-Based VLAN
  • Configurable WAN2
  • Routing Protocol:
    • Static Routing
    • RIP V2
Özellik Açıklama
Ağ İzleme ve Görüntüleme Yok
Ağ Yönetimi TR-069 Management,Web-Based User Interface (HTTP/HTTPS), Quick Start Wizard, CLI (Command Line Interface, Telnet/SSH) ,Administration Access Control, Configuration Backup/Restore, Built-in Diagnostic Function, Firmware Upgrade via TFTP/FTP/HTTP/TR-069, Logging via Syslog, SNMP Management with MIB-II, Management Session Time Out, 2-level management (Admin/User Mode)

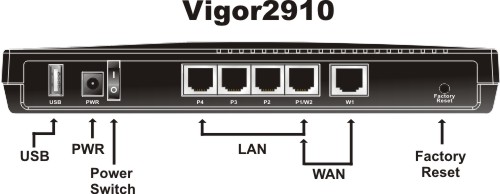

LAN Port Adeti 4 Port
LAN Port Veri Hızı 10/100Mbps
LAN Port Tipi Bakır Ethernet
Dual WAN Var
WAN Port adeti 2 Adet
WAN Arayüzü RJ-45
WAN Protokolleri DHCP İstemci,Statik IP, PPPoE, PPTP, L2TP, PPP
WAN Port Fiziksel Tipi Ethernet
SSL VPN Yok
VPN Adeti 32 Adet
VPN Kimlik Doğrulama MD5, SHA-1
VPN Protokol PPTP, IPSec, L2TP, IPSec üzerinden L2TP
VPN Şifreleme AES, MPPE ve donanım tabanlı DES/3DES
VoIP Desteği Yok
VoIP Port Adeti Yok
VoIP Arayüzü Yok
Desteklediği VoIP Codec Tipi Yok
Wireless Yok
WPS Button Yok
Uzak Yönetim Telnet, Web, SSH, Vigor ACS SI
Firmware güncelleme Var
Load Balance Outbound Policy-based Load-balance, BoD ( Bandwidth on Demand ), WAN Connection Fail-over
USB Arabirim Adeti 1 Adet
USB Cihaz Desteği USB printer or 3G USB Modem
3G Backup Var
Smart Monitor Yok
Loglama 5651 Sayılı Kanuna Uygun Loglama(Opsiyonel Ücretli)
RackMount Aparat (Opsiyonel) Yok
Opsiyonel Port Yok
Form Factor Desktop
Firewall Servisler WEB Content Filter (Opsiyonel)
Firewall Özellikleri CSM (Content Security Management) for IM/P2P Application, Çoklu NAT, DMZ host, port yönlendirme/ port açma, SPI(Stateful Packet Inspection)Dinamik Paket İnceleme, DoS/DDos Önleme
QoS Özelllikleri Class-based Bandwidth Guarantee by User-defined Traffic Categories,DiffServ Code Point Classifying ,4-level Priority for Each Direction (Inbound/Outbound),Bandwidth Borrowed
Yazıcı Sunucu Desteği Var
Yönetim Web Yönetim, UPnP (Basit Cihaz), SNMP: v1, v2, v2c, Ether Like MIB, MIB II, 802.11MIB , Watchdog Timer to WARM boot system
FTP Sunucu Desteği Var
Anten Yok
Harici Anten Desteği Yok
Uyumlu Olduğu Standartlar FCC Class B, CE Class B, BSMI Class B
Çevresel Standartlar RoHS
Boyutlar (En/Boy/Yükseklik) L220 * W160 * H36 (mm)
Dil Desteği English
Ürünün Web Sayfası http://www.draytektr.com
Satış Garanti Süresi (Ay) 24

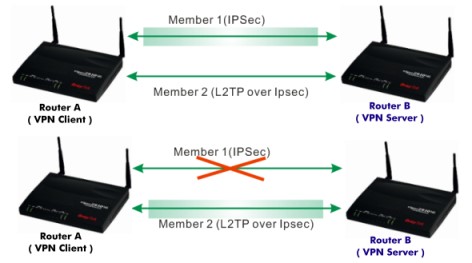

VPN Trunk VPN Backup
