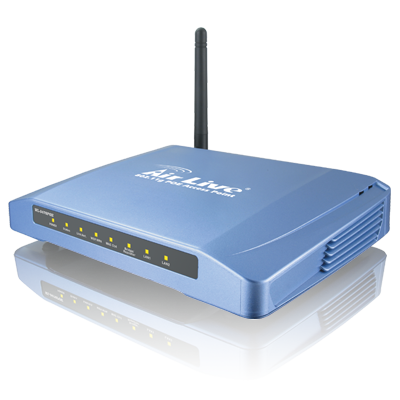

AirLive WL5470PoE MultiFunction PoE Wireless AP

AirLive WL5470PoE MultiFunction PoE Wireless AP

802.11G Wireless Çok Fonksiyonlu AP : 8 farklı çalışma modu desteği, 20dBm yayın gücü, 2 adet 802.3AF destekli LAN port, 802.1x, WPA/WPA2, TX yayın gücü ayarlama, SNMP/ Watchdog / ACK / RSSI desteği.

802.11G Power over Ethernet Wireless Access Point 802.11G Wireless Çok Fonksiyonlu AP : 8 farklı çalışma modu desteği, 26dBm yayın gücü, 1 adet LAN port, 1 adet WAN Port, 802.1x, WPA/WPA2, TX yayın gücü ayarlama, SNMP/Watchdog/ACK/RSSI desteği. Wireless signal survey desteği. MW2000S ile çalıştırıldığında otomatik olarak tanınma ve yönetim.



Özellikler
·         AP, Bridge, Client, Repeater functions
·         Router and Gateway mode
·         WISP Client Router mode WISP + Universal Repeater Mode
·         Up to 26dBm output power (South America)
·         R-SMA antenna connector, detachable Antenna
·         IEEE802.3af standard compliant
·         802.1x, WPA, WPA2 and Web Mgt
·         4MB Flash, 16MB SDRAM
·         20dBm(EU) or 26dBm(South America) Output Power
·         TX power regulation in 6 levels
·         Bandwidth Control and Signal Survey
·         Client Isolation, Watchdog, and TX Power egulation
·         SSH2/HTTP/Telnet managements
·         DHCP Relay Agent Supported
·         Up to 40 Access Control List
·         ACK Timeout Adjustment
·         Watchdog, and TX Power Regulation
·         Watchdog function use PING
·         WDS Site Survey
·         802.11g Protection
·         40 MAC Access Control List

Donanım
·         2 x 10/100Mbps LAN Port LAN 1 compliant with IEEE802.3af standard
·         4MB Flash, 16MB SDRAM
·         Reversed SMA Antenna Port
·         Power, LAN, WLAN LED indicators

Anten
·         2 dBi detachable Dipole Antenna
·         Reversed SMA Connector

Kablosuz Servis Sağlayıcı Modu (WISP)
·         DHCP, PPTP, L2TP, PPPoE ISP Authentication Support
·         Wireless Client function as WAN
·         To configure the WISP mode, you PC must be connected to the LAN port

Ağ Geçidi Modu (Gateway Modu)
·         LAN 1 becomes to WAN port
·         NAT Routing between WAN and LAN port
·         Wireless used for LAN side
·         Virtual Server, MAC filtering, DMZ, Firewall, IP filtering functions

Güvenlik
·         64/128-bit
·         802.1x Radius Support
·         WPA/WPA2-PSK support
·         WPA Enterprise support in AP/WDS mode

Konfigürasyon
·         Web/Telnet/SSH2 Management
·         WDS (Bridge, Client, Repeater) mode
·         Hide ESSID
·         802.1x

Frekans Aralığı
·         USA (FCC) 11 Channels: 2.412GHz~2.462GHz
·         Europe (ETSI) 13 Channels : 2.412GHz~2.472GHz
·         Japan (TELEC) 14 Channels :2.412GHz~2.483GHz

Modülasyon Tekniği
·         11g Orthogonal Frequency Division Multiplexing (64QAM, 16QAM, QPSK, BPSK)
·         11b Direct Sequence Spread Spectrum (CCK, DQPSK, DBPSK) Data Rate: 54, 48, 36, 24, 18, 11, 5.5, 2, 1 Mbps

Çıkış Gücü
·         20dBm(EU), 23dBm(FCC), 26dBm(South America)
·         Adjustable in 6 levels
·         MAC Access Control
·         MAC Access Table
·         Wireless Client Isolation
·         SSID, Channel, RTS Threshold, Fragment Threshold

Çevresel
·         Operating temperature: 0~60 Derece
·         Operating humidity (non-condensing): 20~80%
·         Storage temperature: -20~65 Derece
·         Storage humidity: 95% Max

Güç Kaynağı
·         DC12V or 82.3af PoE

Elektromanyetik Emisyon (EMI)
·         FCC, CE

Ürün Ağırlığı (g)
·         236 g

Ürün Boyutları ( L x W x H (mm) )
·         60 x 115 x 30 mm
Özellik Açıklama
LAN Port Adeti 5 Port
LAN Port Tipi Bakır Ethernet
LAN Port Veri Hızı 10/100Mbps
WAN Port adeti 1 Adet
Wireless Çalışma Modu AP mode, Client mode, Bridge mode, WDS Repeater, Universal Repeater, WISP mode, WISP + Universal Repeater
Wireless Protokolleri 802.11b/g
Frekans Bandı USA (FCC) 11 Channels: 2.412GHz~2.462GHz, Europe (ETSI) 13 Channels : 2.412GHz~2.472GHz
Güvenlik 64/128-bit, WPA/WPA2-PSK support, WPA Enterprise support in AP/WDS mode
WPS Button Yok
Anten 1 adet 2 dBi anten
Harici Anten Desteği Var
USB Arabirim Adeti Yok
USB Cihaz Desteği Yok
Reset Buton Yok
WDS Özelliği Var
Transmisson Rate 54, 48, 36, 24, 18,11, 5.5, 2, 1 Mbps
Anten Çalışma Açısı 360 derece
Loglama Syslog Tools
Firmware güncelleme Var
Gateway Modu Virtual Server, MAC filtering, DMZ, Firewall, IP filtering functions
Multi SSID Yok
Dual Radio Yok
PoE 802.3af
WISP Modu Var
Hardware 2MB Flash, 16MB SDRAM
Çevresel Standartlar RoHS
Uyumlu Olduğu Standartlar FCC Class B, CE Class B
Dil Desteği English,Estonian,German,Danish, Czech,Lithuanian,Dutch,Maltese,Hungarian,Polish,Portuguese, Spanish,Greek,French,Italian,Swedish,Norwegian,Icelandic,Finnish,Slovak,Slovenian
WMM Desteği Yok
Ürünün Web Sayfası http://www.airlivetr.com
Ağırlık (Ürün) 236 g
Boyutlar (En/Boy/Yükseklik) 160 x 115 x 30 mm
Satış Garanti Süresi (Ay) 24
Yayın Gücü 20dBm(EU), 23dBm(FCC), 26dBm(South America)
Yayın Mesafesi 100m
TX Yayın Gücü Ayarlama Var
