Antenler ile AP'ler arası bağlantı için 3m lik Male N-Type dan Male N-Type a kablo.

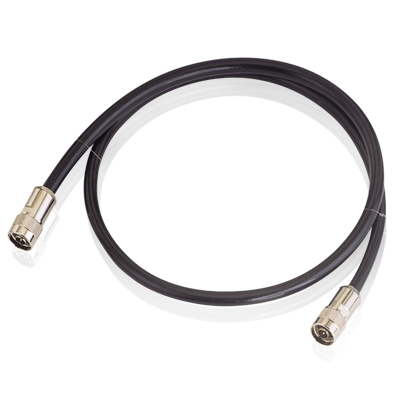

AirLive RG213-NN-3 3m Male N-Type Anten Kablosu Antenler ile AP'ler arası bağlantı için 3m lik Male N-Type dan Male N-Type a kablo.

Connector type

Male N-Type to Male N-Type
Connect directly to most outdoor APs and outdoor Antennas
RG316-SNF cable required to connect with indoor AP

Length

3 meter

Special length available upon request

Impedance

50 Ohms nominal

Capacitance

98 pF/ft

Cut Off Frequency

65 GHz

Structure

Conductor

- Composition (No./mm): 7/030752mm
- Material: strand bare copper wire
- Diameter: 2.3mm

Insulation

- Thickness: 2.45mm
- Material: Solid Polyethylene
- Diameter: 2.45mm

Shield

- Material: bare copper wire
- Construction: 24x8/0.18
- Coverage: 95%
- Diameter: 0.18mm

Jacket

- Color: Black
- Material: NC-PVC
- Diameter: 10.30mm

Attenuation

2.5dBi at 3m with 2 connectors

100Mhz: 6.2 dB/100ft

200Mhz: 8.9 dB/100ft

400Mhz: 13.4 dB/100ft

700Mhz: 21.4 dB/100ft

900Mhz: 25 dB/100ft

Özellik	Açıklama
Anten Bağlantı Tipi	Male N-Type to Male N-Type, Connect directly to most outdoor APs and outdoor Antennas, RG316-SNF cable required to connect with indoor AP
Uzunluk	3 metre
Direnç	98 pF/ft
Frekans Bandı	65 GHz
Yapısı	Conductor: Composition (No./mm): 7/030752mm, Material: strand bare copper wire, Diameter: 2.3mm, Insulation: Thickness: 2.45mm, Material: Solid Polyethylene, Diameter: 2.45mm, Shield: Material: bare copper wire, Construction: 24x8/0.18, Coverage: 95%, Diameter: 0.18mm, Jacket: Color: Black, Material: NC-PVC, Diameter: 10.30mm
Ürünün Web Sayfası	http://www.airlivetr.com
Satış Garanti Süresi (Ay)	24

Antenler ile AP'ler arası bağlantı için 3m lik Male N-Type dan Male N-Type a kablo. ...

AirLive RG213-NN-3 Datasheet
