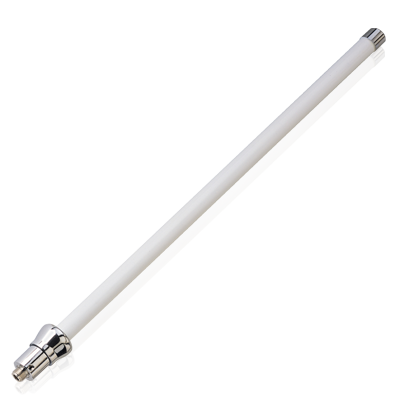

AirLive WAE085GP 8.5dBi OutDoor Omni Antenna

AirLive WAE085GP 8.5dBi OutDoor Omni Antenna

OutDoor Point to MultiPoint (Noktadan çok Noktaya) uygulamaları için yüksek güçlü Omni Anten. 360 derece yatay, 15 derece dikey yayın yapar. Üzerinde Female N-Type (N-Tipi Dişi) konnektör mevcuttur.

AirLive WAE-085GP 2.4Ghz 8,5dBi OutDoor GP Omni Anten OutDoor Point to MultiPoint (Noktadan çok Noktaya) uygulamaları için yüksek güçlü Omni Anten. 360 derece yatay, 15 derece dikey yayın yapar. Özellikle geniş kapsama alanı uygulamalarında çok yüksek performans sağlar. Üzerinde Female N-Type (N-Tipi Dişi) konnektör mevcuttur.

Weather Resistant Antenna

The WAE-085GP is a 8.5dBi wireless antenna constructed of weather resistant material. The omni-directional(360 degree horizontal) coverage makes the antenna ideal for outdoor AP use. The antenna is equipped with female N-Type connector for use with RG-213 cable. Please note the vertical coverage is only 15 degree; therefore, the remote object should at similar altitude as the antenna. For building to building application, please choose the outdoor patch antenna.
Extending AP's antenna Outdoor
Wireless signal loses a majority of its strength when penetrating a concrete wall. Therefore, indoor AP has difficulty to makes its signal available outside of the building. The WAE-085GP allows your AP's antenna to extend outside, mounting on a rooftop or outside wall. This is essential for a community wireless network where the AP will service as the central internet connection hub. Because of its 360 degree coverage, it will ensure the signal will cover the area around the building. However, it is not recommend for building to building bridge use. The antenna comes with N-Type connector for connection with outdoor AP. To connect with indoor AP's reversed-SMA connector, a RG316-SNF adapter cable and RG213-SNN cable is required.

Connector type

Female N-Type
Recommended adapter and
cable		 RG-213-SNN cable required for connection with outdoor AP
RG316-SNM cable required for short connection(30cm) with indoor AP
RG316-SNF and SG213-SNN required for longer distance(>30cm)
with indoor AP
Frequency range 2.4~2.5GHz
Impedance 50 Ohms nominal
VSWR 2.0 or smaller
Gain 8.5dBi
Radiation Horizontal: 360 degree
Vertical: 15 degree
Polarization Vertical
Material Radiator: Copper and Brass
Radome: Fiberglass
Mounting Base: Zinc Alloy with Chrome Plated
Guide Pipe: Aluminum Alloy
Bracket: Aluminum Alloy
Temperature Operating: -20 to +65 degree C
Storage: -30 to +75 degree C
Dimensions 570 x 29 mm

Özellik Açıklama
Frekans Bandı 2.4~2.5GHz
Kazanç 8.5dBi
Anten Bağlantı Tipi Female N-Type (Dişi N Tipi)
Polarizasyon Vertical
Materyal Radiator: Copper and Brass, Radome: Fiberglass, Mounting Base: Zinc Alloy with Chrome Plated, Guide Pipe: Aluminum Alloy, Bracket: Aluminum Alloy
Önerilen Adaptör ve Kablolar RG-213-SNN cable required for connection with outdoor AP, RG316-SNM cable required for short connection(30cm) with indoor AP, RG316-SNF and SG213-SNN required for longer distance(>30cm)
VSWR 2.0 or smaller
Anten Çalışma Açısı Horizontal: 360 degree, Vertical: 15 degree
Boyutlar (En/Boy/Yükseklik) 570 x 29 mm
Çevresel Standartlar RoHS
Ürünün Web Sayfası http://www.airlivetr.com
Satış Garanti Süresi (Ay) 24
