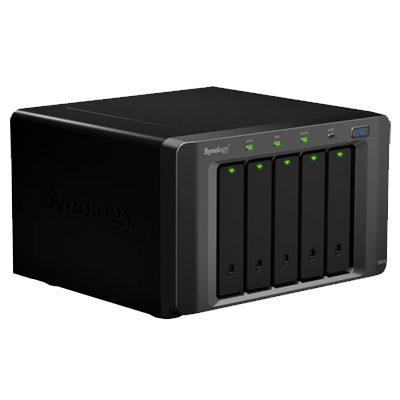

SATA NAS için 5 Yuvalı Kapasite Artırma Ürünü Bazı desteklenen Synology NAS ürünleri için hızlı ve kolay kapasite artırma amacı ile kullanılır. Üzerinde bulunan 5 adet HDD yuvasına takılabilecek SATA HDD ‘ler ile çok kolay bir kapasite artışı sağlar. Synology DS710+ ve DS1010+ destekler.

• Tak ve Kullan
• Hot-swappable HDD dizaynına sahiptir
• Hibernation Desteği
• Synology DiskStation Manager 2.3 ile Yönetilebilir

Donanım

•     Internal HDD: 5X 3.5" SATA or 5X 2.5" SATA
•     eSATA port X 1
•     Hot Swappable HDD: Yes
•     Size (mm): 157 X 248 X 233
•     Weight：4.10KG
•     System Fan：X 2(80x80mm)
•     Noise Level (fan-only)：30dB(A)
•     Power Recovery: sync with the connected Disk Station
•     AC Input Power Voltage：100V ~ 240V AC
•     Power Frequency：50 / 60Hz，Single Phase
•     Operating Temperature：40 ~ 95°F (5 ~ 35°C)
•     Storage Temperature：15 ~ 155°F (-10 ~ 70°C)
•     Relative Humidity：5% ~ 95% RH
•     Maximum Operating Altitude：10,000feet

Güç Sarfiyatı

• 59W（Access），18W（HDD Hibernate）

RAID Yönetimi

• Volume Type：Basic, JBOD, RAID 0, RAID 1, RAID 10, RAID 5, RAID 5+Spare, RAID 6
• Managed with the Synology DSM 2.3

Sertifikasyon

• FCC: Class B
• CE: Class B
• BSMI: Class B

Çevresel

• RoHS Compliant

Paket İçeriği

• Synology DX510 Main Unit
• User's Guide
• Assembling Kit
• AC Power Cord
• eSATA cable

Volume Expansion & Backup

When running out of the hard drive capacity on the Synology DiskStation, the Synology DX510 provides an easy way to immediately scale capacity by an additional 5 hard drives. The RAID volume on the Synology DiskStation can be expanded directly without having to reformat the existing hard drives, ensuring the Synology DiskStation continues its service during the capacity expansion. When created as a separate volume, the Synology DX510 provides a great solution for backing up the Synology DiskStation.

Reliable Plug-n-use Design

The Synology DX510 is connected to the Synology DiskStation using an eSATA cable with custom-designed connectors on both ends, ensuring a reliable connection and maximum throughput. The eSATA 3.0 Gb/sec definition allows the hard drives in the connected Synology DX510 to operate as they are the internal ones of the Synology DiskStation.

Green & Easy to Manage

The HDD hibernation can be manually configured to take effect automatically when the system has been inactive for a period of time. This not only save energy but also extends the lifespan of the hard disk.

Synology DX510 is managed with the DiskStation firmware Synology DSM 2.3. No firmware installation is needed.
