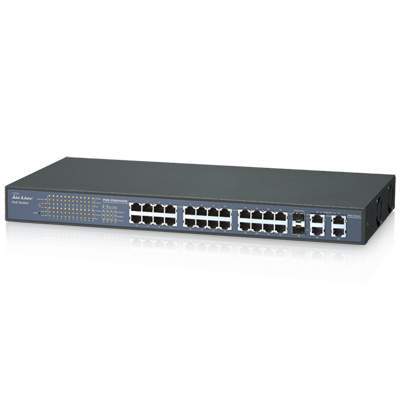

AirLive POE-FSH2442G 24+4-port Web Manage PoE Switch (24 Port PoE)

AirLive POE-FSH2442G 24+4-port Web Manage PoE Switch (24 Port PoE)

24 x 10/100Mbps + 4-port 1000Base-T + 2-port SFP Slots (Combo), toplam 28 port kullanılabilir. 24 PoE Port 48Volt 802.3af PoE Standardı uyumludur. Ethernet kablosu üzerinden, IP Kamera, Access Point ve diğer POE cihazlarına enerji taşır.

AirLive POE-FSH2442G 24+4-port Web Management PoE Switch (24-Port PoE ÖZELLİKLİDİR) 24 x 10/100Mbps + 4-port 1000Base-T + 2-port SFP Slots (Combo), toplam 28 port kullanılabilir. 24 PoE Port 48Volt 802.3af PoE Standardı uyumludur. Ethernet kablosu üzerinden, IP Kamera, Access Point ve diğer POE cihazlarına enerji taşır. Her bir port için 15.4W enerji verebilir. Toplam güç 170W dır. Web arayüzü ile yönetilebilir ve Yazılım yükseltme yapılabilir.

POE-FSH2442G is a 24+4-Port Mixed Gigabit Ethernet Web Smart PoE Switch. Port 1 ~ 24 support Power over Ethernet (PoE). It can automatically detect the presence of an IEEE802.3af compliant powered device (PD) and provide power through the port. The switch provides up 15.4W per PoE port and can be used to power AP, IP phone, IP Cam and other PD devices. With additional two Mini-GBIC slots, you can extend link distance more than 200m for optional Mini-GBIC modules. It is an ideal solution for enterprise or WISP to deploy PoE network environment.
PoE Function
With PoE function, POE-FSH2442G will provide power to PoE compatible device, such as IP phone, wireless LAN access point, and IP camera. POE-FSH2442G has 24 PoE ports, and supports up to 15.4W for each PoE Port, total PoE power is Maximum 170W.
Web management
Through the Web browser, you can configure POE-FSH2442G such as Tag VLAN, Port Trunking, Priority Queues, Port Mirroring and Broadcast Storm Control. We also provide another way to control your POE-FSH2442G. With the attached Web management Utility, you can easily discover all the Web Management Switch, assigning the IP address, changing the password and upgrading the new firmware Furthermore, with displaying PoE Status via WebUI, you can easily monitor power consumption of Switch, control power limitation of port to the powered devices, and enable or disable the PoE function of the selected port.



<!--[if !vml]-->





Standard

IEEE 802.3 10BASE-T 
IEEE 802.3u 100BASE-TX 
IEEE 802.3ab 1000BASE-T 
IEEE 802.3z 1000BASE-SX/LX (GBIC) 
IEEE 802.3af DTE Power via MDI (12,36 pin)


Interface 24 x 10/100Mbps Auto-negotiation, Auto-MDIX PoE ports (port 1 ~ port 24) 
4 x 10/100/1000Mbps Auto-MDIX Gigabit Ethernet ports (port 25 ~ port 28) 
2 x mini GBIC ports, share with 2 1000BASE-T ports(port 25 ~ port 26)
Management Supports 802.1Q VLAN with 256 VLAN groups
Supports 802.1p Priority Queues
Supports static Port Trunk (Support Maximum 6 groups per device and 8 ports
per group)
Supports Port Mirroring
Supports Broadcast Storm Control
Supports DHCP Client
Supports Port setting function allow user setting each port, speed, duplex
mode and configure through Web browser
Supports Port-setting for Speed/Disable, QoS
PoE Up to 15.4W for PoE per port
Maximum 170W for all PoE ports (per device)
PD classification identify
Manual setting for PoE power limitation
Supports PoE Priority setting
PoE Over Current Protection
PoE Circuit sorting protection
PoE Power on RJ-45 pin 3,6 for Power(+) and pin 1,2 for Power(-)
Power Supply 26.5 watts. (max. no PD device connected)
MAYIS6.5 watts (max. for up to 11 PoE Device connected)
Protocol CSMA/CD
Topology Star
Network Data Transfer Rate Ethernet 
＊10Mbps (Half-duplex)
＊20Mbps (Full-duplex)
Fast Ethernet
＊100Mbps (Half-duplex)
＊200Mbps (Full-duplex)
Gigabit Ethernet
＊2000Mbps (Full-duplex)
Bandwidth 12.8 Gbps
Buffer memory 128KBytes
Address table 8K
LED indicators Per Unit: Power, System ( 2 LEDs )
Per port: TX: Link/Activity, Speed ( 2 LEDs )
PoE: PoE Status (port 1 ~ port 24) (bi-color LED)
Per Copper Gigabit Port: Link/ACT, 1000M, 100M
Per GBIC Gigabit Port: Link/ACT, 1000M
Power 100 - 240VAC 50/60Hz, Internal Universal Switching Power
Temperature Operating: 0 to 40°C
Storage: -10 to 70°C
Humidity Operating: 10% ~ 90%
Storage: 5% ~ 90%
Emission CE Class A 
FCC Part 15 Class A
VCCI-A
Safety cUL (UL 60950) 
CB(IEC 60950)
Product Weight (g) 3215 g
Dimensions
( L x W x H (mm) )		 440 x 210 x 44 mm

Özellik Açıklama
Gigabit Ethernet Port 4 Adet 10/100/1000Mbps Auto-MDIX
LAN Port Adeti 24 Port
LAN Port Veri Hızı 10/100Mbps
LAN Arayüzü RJ-45
Fiber Port Sayısı 2 Adet SFP Dual-media Ports
Console Port Yok
Opsiyonel Port Mirror
VLAN Var
Uzak Yönetim Web
PoE 24 port PoE, 802.3af
Protokol CSMA/CD
Tapology Star
Bantgenişliği 12.8 Gbps
Reset Buton Yok
Firmware güncelleme Var
Jumbo Frame Yok
Rate Kontrol Var
VSM (Virtual Stack Management) Yok
Trunk Support Maximum 6 groups per device and 8 ports per group
Gönderme Hızı Ethernet (10Mbps (Half-duplex),20Mbps (Full-duplex)), Fast Ethernet (100Mbps (Half-duplex), 200Mbps (Full-duplex)), Gigabit Ethernet (2000Mbps (Full-duplex))
Yazılımsal Özellikler Broadcast Storm Control, DHCP Client, Port setting function allow user setting each port, speed, duplex, Port-setting for Speed/Disable, QoS, IGMP Snooping
Buffer Memory 128 KBytes
Multicast Özelliği Yok
ACL (Access Control List) Var
Mini-GBIC Slot 2 Adet
Uyumlu Olduğu IEEE Standartları IEEE 802.3 10Base-T Ethernet, IEEE 802.3u 100Base-TX Fast Ethernet, IEEE 802.3ab 1000Base-T, IEEE 802.3z Gigabit Fiber, IEEE 802.3x Flow Control and Back Pressure, IEEE 802.1d Spanning Tree, IEEE802.1w Rapid Spanning Tree Protocol,IEEE 802.3ad Port trunk with LACP, IEEE 802.1p Class of Service, IEEE 802.1Q Tag VLAN, IEEE 802.1x Port Based Authentication
Uyumlu Olduğu Standartlar CE ClassA,FCC Part15 ClassA,VCCI-A
Çevresel Standartlar RoHS
Dil Desteği English,Estonian,German,Danish, Czech,Lithuanian,Dutch,Maltese,Hungarian,Polish,Portuguese, Spanish,Greek,French,Italian,Swedish,Norwegian,Icelandic,Finnish,Slovak,Slovenian
Ürünün Web Sayfası http://www.airlivetr.com
Ağırlık (Ürün) 3215 g
Boyutlar (En/Boy/Yükseklik) 440 x 210 x 44 mm
Satış Garanti Süresi (Ay) 24
