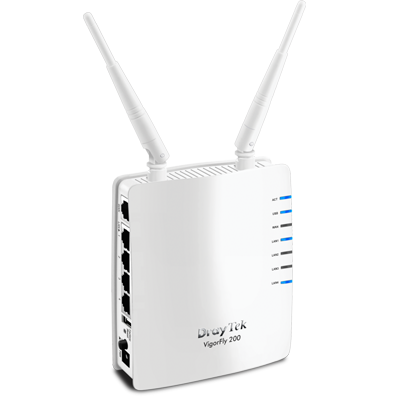

Draytek VigorFLY 200 Wireless Router

Draytek VigorFLY 200 Wireless Router

Yeni nesil 300Mbps hızlara kadar hizmet verebilen 802.11n standardına uyumlu kablosuz Router (Yönlendirici) cihazıdır. 802.11b/g/n desteğine sahiptir. WMM (Wireless Multi Media) desteği sayesinde akıcı görüntü ve ses uygulamaları için optimum performans.

Yeni nesil 300Mbps hızlara kadar hizmet verebilen 802.11n standardına uyumlu kablosuz Router (Yönlendirici) cihazıdır. 802.11b/g/n desteğine sahiptir. WMM (Wireless Multi Media) desteği sayesinde akıcı görüntü ve ses uygulamaları için optimum performans. 1 adet 2dBi değiştirilemez anteni ile yüksek güce sahiptir. 4 adet LAN ve 1 adet WAN portu mevcuttur. 3G ve WiMAX bağlantı için kullanılmak üzere üzerinde bir adet USB portu vardır.

Even though broadband is now widespread in the world, there are still places and times that a viable access to the Internet is not available. You can connect a WIMAX data card to your laptop. However, there is limitation for sharing Internet connection. VigorFly 200 router is what you are looking for.

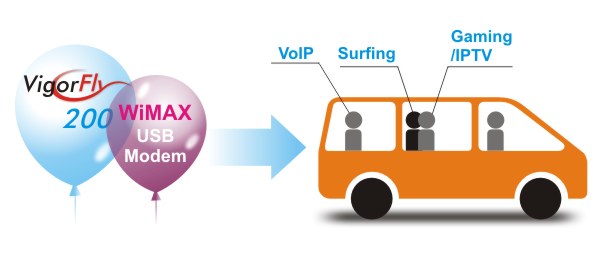

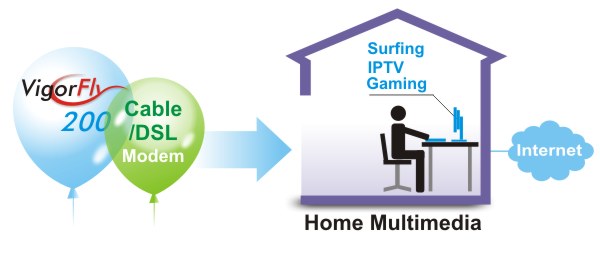

VigorFly 200 is a compact broadband router with 802.11n WLAN network. Its Ethernet WAN port can connect to VDSL/VDSL2/GPON/G.SHDSL/ADSL2+/ADSL/cable modem while you have fixed line. The NAT throughput can easily manage time-critical multimedia streaming. It's easy for family or friends to hook up PCs via embedded 10/100 Ethernet LAN switch to enjoy multimedia applications. Two antennas provide you with speedy WLAN networking. If you are out of coverage of fixed line, you can directly plug WiMAX USB modem to USB port on VigorFly 200. Or, you can use WiMAX USB modem with VigorFly 200. The sharing WiMAX connection accommodates adequate downstream/upstream capacity for residential needs.

The integrated 802.11n Draft 2.0 WLAN network which offers users stable and reliable wireless connections for high speed multimedia and data traffic by means of WMM (WiFi Multimedia).

While coverage of WLAN network is extended by 802.11n, the Wireless Client list, the encryption methods of WEP/ WPA/WPA2 consist of better wireless security.

Moreover, VigorFly 200 provides enhanced security protection for your network. The DoS/DDoS attack prevention, SPI, Port-redirection, open port, and MAC address filter strengthens the security outside and inside the network.

1. WAN Protocol

  • DHCP Client
  • Static IP
  • PPPoE
  • PPTP
  • 3.5G/4G WiMAX

2. Firewall

  • DMZ Host, Port-redirection and Open Port
  • ACL
  • MAC Address Filter
  • SPI (Stateful Packet Inspection)
  • DoS/DDoS Prevention
  • IP Address Anti-spoofing
  • E-mail Alert and Logging via Sys
  • log
  • VPN Pass-through (IPSec/PPTP/L2TP)

3. Network Feature

  • DHCP Server
  • DHCP Option
  • Dynamic DNS
  • NTP Client
  • UPnP
  • IGMP Proxy V2
  • DNS Cache/Proxy
  • Static Routing

4. Network Management

  • Web-based User Interface (HTTP)
  • Quick Start Wizard
  • CLI (Command Line Interface, Telnet)
  • Configuration Backup/Restore
  • Built-in Diagnostic Function
  • Firmware Upgrade via WUI
  • Administration Access Control
  • Logging via Syslog
  • Management Session Time Out
  • 2-level User Name Management (Admin/User)

5. Wireless Access Point

  • IEEE802.11 b/g/n Compliant
  • Wireless Client List
  • 64/128-bit WEP
  • WPA/WPA2
  • Hidden SSID
  • WPS
  • Multiple SSID
  • WMM (Wi-Fi Multimedia)*

6. Hardware Interface

  • 4 x 10/100 Base-TX LAN Switch, RJ-45
  • 1 x 10/100Base-TX WAN Port, RJ-45
  • 2 x Detachable Antennas
  • 1 x USB Host 2.0 (for 3.5G USB Modem)
  • 1 x Factory Reset Button
  • 1 x Wireless On/Off/WPS Button

7. USB

  • 3.5G Backu-p
  • WiMAX Back-up

 Note: 3.5G/4G WiMAX mobile compatibility please refer to DrayTek support list.

* Yazılım Güncellenebilir

Özellik Açıklama
Ağ Özellikleri
Ağ Yönetimi Web Tabanlı kullanıcı Ara yüzü (HTTP / HTTPS), Hızlı Başlangıç Sihirbazı, CLI (Command Line Interface, Telnet/SSH) , Yönetim Erişim Kontrolü, Ayar yedekleme/arşivleme, Gömülü Tanı Fonksiyonu, TFTP / FTP üzerinden gömülü yazılım güncelleme, Syslog üzerinden Kayıt, SNMP Yönetimi MIB-II.
LAN Port Adeti 4 Port
LAN Port Tipi Bakır Ethernet
LAN Port Veri Hızı 10/100Mbps
WAN Port adeti 1 Adet
WAN Arayüzü RJ-45
WAN Port Veri Hızı 10/100 Mbps
WAN Protokolleri 3.5G/4G WiMAX, DHCP Client, PPTP, PPPoE, Static IP
SSL VPN Yok
VPN Adeti VPN PassTrought
Firmware güncelleme Var
3G Backup Var
VoIP Desteği Yok
Wireless
WLAN Var
Wireless Protokolleri 802.11n, 802.11b/g
Güvenlik 64/128bit WEP, WPA, WPA2
USB Cihaz Desteği 3.5G Back-up, WiMAX Back-up
USB Arabirim Adeti 1 Adet
Opsiyonel Port Yok
Anten 2 adet 2 dBi Omni Anten
WPS Button Var
Firewall Özellikleri DMZ Host, Port-redirection and Open Port,ACL,MAC Address Filter,SPI(Stateful Packet Inspection),Dos/DDos Prevention,IP Address Anti-spoofing,E-mail Alert and Logging via Syslog
VLAN Yok
Uzak Yönetim Telnet, Web, SSH
Dil Desteği English
Çevresel Standartlar RoHS
Uyumlu Olduğu Standartlar CE
Boyutlar (En/Boy/Yükseklik) W112 * H132 * D41 (mm)
Ürünün Web Sayfası http://www.draytektr.com
Satış Garanti Süresi (Ay) 24
