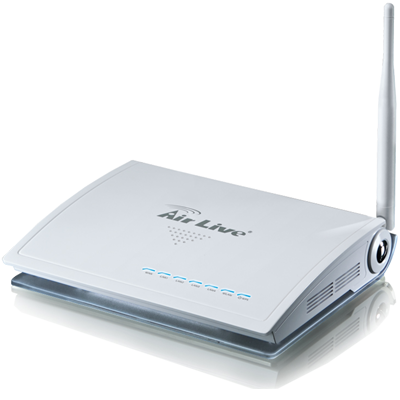

AirLive Air3G 1 Watt 11n 3G Broadband Router
30dBm 3G/Broadband Router (USB 2.0 Arayüzlü), PoE ve HotSpot fonksiyonları. Normal güçlü router ve AP 'lere göre 9 kat daha fazla geniş alanı kapsar. 3G/3.5G/UMTS/EVDO/ HSDPA USB Dongle ile çalışabilir. Hotspot authentication fonksiyonu.
AirLive 1 Watt 11n 3G Broadband Router 30dBm 3G/Broadband Router (USB 2.0 Arayüzlü), PoE ve HotSpot fonksiyonları. Normal güçlü router ve AP 'lere göre 9 kat daha fazla geniş alanı kapsar. 3G/3.5G/UMTS/EVDO/ HSDPA USB Dongle ile çalışabilir. Hotspot authentication fonksiyonu, Multiple SSID ve Bandgenişliği kontrol özelliği mevcuttur. Green AP güç tasarruf fonksiyonu, 1 adet USB 2.0 Portu, WAN portu ile ADSL/Cable Modem desteği mevcuttur. 3G Router, AP, Client, Bridge, Repeater modes modları vardır.
|
Donanım Özellikleri
|
150N 1T1R 11b/g/n Radio
Up to 30dBm Output Power (20dBm in EU, 23dBm in the U.S.) 8MB Flash, 32MB SDRAM 1x USB 2.0 Port Hotspot authentication function 4 x 10/100 Mbps Ethernet Port with Auto MDI/MDI-X support 12V Passive PoE Port (LAN1) WAN Port 7 LED indicators Wall Mount Screw Holes Reset Button WPS Push Button |
|
Anten
|
1 x R-SMA antenna connectors
1 x 5dBi dipole antenna |
|
Frekans Bandı
|
USA (FCC) 11 Channels: 2.412GHz~2.462GHz
Europe (ETSI) 13 Channels : 2.412GHz~2.472GHz |
|
Oran ve Modülasyonlar
|
Data Rate: 54, 48, 36, 24, 18,11, 5.5, 2, 1 Mbps
Modulasyon - 11g Orthogonal Frequency Division Multiplexing (64QAM, 16QAM, QPSK, BPSK). - 11b Direct Sequence Spread Spectrum (CCK, DQPSK, DBPSK) |
|
Çıkış Gönderme Gücü
|
ETSI(Europe)
- 802.11b : About 20dBm max - 802.11g : About 20dBm max - 802.11n : About MAYISdBm max FCC(The United States) - 802.11b : About 23dBm max - 802.11g : About 23dBm max - 802.11n : About 22dBm max South America - 802.11b : About 30dBm max - 802.11g : About 29dBm max - 802.11n : About 27dBm max |
|
Alıcı Hassasiyeti
Operasyon Modları |
ETSI(Europe)
- 802.11b : About 20dBm max - 802.11g : About 20dBm max - 802.11n : About MAYISdBm max FCC(The United States) - 802.11b : About 23dBm max - 802.11g : About 23dBm max - 802.11n : About 22dBm max South America - 802.11b : About 30dBm max - 802.11g : About 29dBm max - 802.11n : About 27dBm max WISP + AP Mode
Dual AP Mode Client + AP Mode Gateway + AP Mode WDS + AP Mode |
|
Avantajlı Fonksiyonlar
|
Site Survey with Signal Strength Indicator
Bandwidth Control / Traffic Shaping Wi-Fi, WPA compatible interoperability WPA with PSK/TKIP/AES support ,WPA2 support Privacy Separator support Hide SSID Support Support adjustable output power ACK Timeout Adjustment Bootloader Protection and Emergency Firmware Upload Code Radius Supported Up to 40 Static DHCP entries Firmware upgrade and configuration backup via Web Partial Configuration Backup and Restore |
|
Boyutlar ve Ağırlık
|
Dimension: 154 x 130 x 316 mm
AP Unit Weight(Approximate): 280g Package Weight(Approximate): 686g |
|
Güç Kaynağı
|
Input: 100~240Vac/50~60Hz
Output: DC 12V/1A 12V Passive PoE Port (DC Injector not included) |
|
Sertifikasyon
|
CE
FCC |
|
Çevresel
|
Operating temperature: 0~50℃
Operating humidity (non-condensing): 20~80% Storage temperature: -20~65℃ Storage humidity: 95% Max |
| Özellik | Açıklama |
|---|---|
| LAN Port Adeti | 4 Port 10/100Mbps |
| LAN Port Tipi | Bakır Ethernet |
| LAN Arayüzü | RJ-45 |
| LAN Port Veri Hızı | 10/100Mbps |
| Hardware | 4MB Flash, 32MB SDRAM |
| USB Arabirim Adeti | 1 Adet |
| PoE | 12V pasif |
| Güvenlik | WPA with PSK /AES support ,WPA2 support |
| Firmware güncelleme | Var |
| Reset Buton | Var |
| WPS Button | Var |
| Frekans Bandı | USA (FCC) 11 Channels: 2.412GHz~2.462GHz, Europe (ETSI) 13 Channels : 2.412GHz~2.472GHz |
| TX Yayın Gücü Ayarlama | Var |
| 3G Protokolleri | UMTS, HSPA 3G D3.6 Mbit/s, U384 Kbit/s,HSDPA 3.5G D7.2Mbit/s, U384 Kbit/s,HSUPA 3.75G D7.2Mbit/s, U5.6Mbit/s,CDMA2000 1xEV-DO D3.1Mbit/s, U1.8Mbit/s |
| Anten | 1 adet 3 dBi Omni Anten |
| Anten Bağlantı Tipi | Reverse SMA |
| İleri Seviye Fonksiyonları | Setup Wizard, WPS Support, WAN and 3G Auto Connection Backup, Multiple SSID Virtual AP functions,Bandwidth Control / Traffic Shaping,Privacy Separator support,Hide SSID Support,Support adjustable output power,Bootloader Protection and Emergency Firmware Upload Code,Up to 40 Static DHCP entries,Static Route, Virtual Server, URL Filter, Firewall,configuration backup via Web,Configuration Backup and Restore |
| Wireless Çalışma Modu | 3G Broadband Router Mode, AP Mode,Client Mode,WDS Repeater Mode,WDS Bridge Mode |
| Veri İletim Oranları | 802.11n(20 MHz BW(LGI): 65, 58.5, 52, 39, 26, 19.5, 13, 6.5), 802.11g: 54, 48, 36, 24, 18, 12, 9 and 6 Mbps,802.11b: 11, 5.5, 2 and 1 Mbps |
| Hotspot Doğrulama Özelliği | Var |
| Çevresel Standartlar | RoHS |
| Boyutlar (En/Boy/Yükseklik) | 154 x 130 x 316 mm |
| Ağırlık (Ürün) | 280g |
| Ürünün Web Sayfası | http://www.airlivetr.com |
| Uyumlu Olduğu Standartlar | CE, FCC |
| Satış Garanti Süresi (Ay) | 24 |
