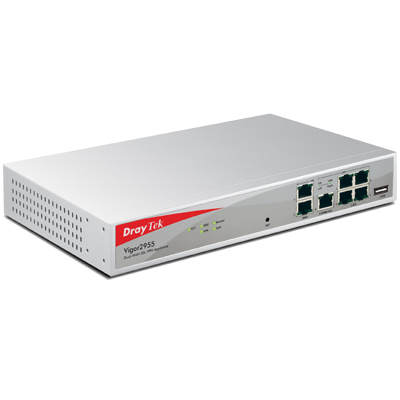

Draytek Vigor 2955 Dual WAN Gigabit Router
Çok yüksek performanslı yeni nesil iki adet (Dual) WAN portu bulunan Load Balance ve Fail Over yapabilen kurumsal bir Security Gateway 'dir.ADSL, Kablo Internet, Metro veya Leased Line arkasında paylaşım ve Firewall özellikleri ile Ağ güvenliğiniz sağlar
Dual WAN Broadband High Performance VPN Router Çok yüksek performanslı yeni nesil iki adet (Dual) WAN portu bulunan Load Balance ve Fail Over yapabilen kurumsal bir Security Gateway 'dir. ADSL, Kablo Internet, Metro veya Leased Line arkasında paylaşım ve Firewall özellikleri ile Ağ güvenliğiniz sağlar. Cihaz üzerinde 200 adet VPN Tünel ve aynı anda 50 adet SSL VPN Tunel destekler. 5 adet (4 adet LAN, 1 adet Miror) Giga LAN portu, 2 adet WAN portu mevcuttur. SMARTMONITOR (100 PC) Destekler. Quedra Log Monitor destekler. USB Portunda 3,5G Modem ile Backup.

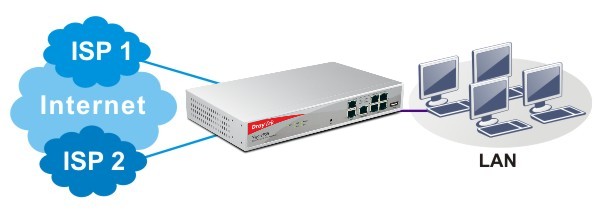

It allows users to access Internet and combine the bandwidth of the dual WAN to speed up the transmission through the network. Each WAN port can connect to different ISPs, Even if the ISPs use different technology to provide telecommunication service (such as DSL, Cable modem, etc.). If any connection problem occurred on one of the ISP connections, all the traffic will be guided and switched to the normal communication port for proper operation.

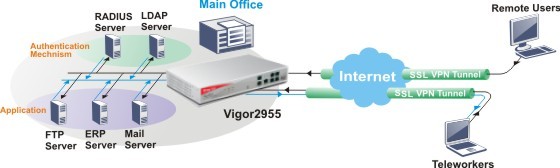

Without the necessity of installing VPN client on individual PC, the Secure Socket Layer (SSL) virtual private network (VPN) facility lets remote workers connect to the office network at any one time. SSL is supported by standard web browsers such as FireFox and IE. For users of small offices and teleworkers who need to access enterprises's internal applications, file server and file sharing, Vigor2955 security router series allow up to 50 concurrent SSL sessions.

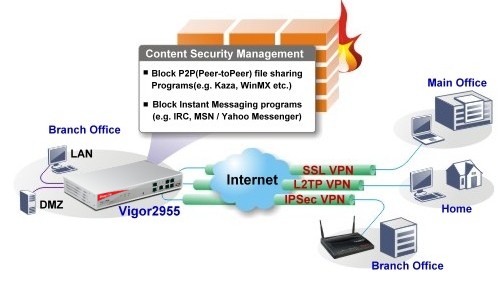

The Vigor2955 also provides high-security firewall options with both IP-layer and content based protection. The DoS/DDoS prevention and URL/Web content filter strengthen the security outside and inside the network. The enterprise-level CSM (Content Security Management) enables users to control and manage IM (Instant Messenger) and P2P (Peer to Peer) applications more efficiently. The CSM hence prevents inappropriate content from distracting employees and impeding productivity. Furthermore, the CSM can keep office networks threat-free and available. With CSM, you can protect confidential and essential data from modification or theft.
1. WAN Protocol
|
2. Dual WAN
|
3. VPN
|
4. Content Filter
|
5. Firewall
|
6. USB
|
7. System Management
|
8. Bandwidth Management
|
9. Routing Functions
|
10. Internet CSM (Content Security Management) Featuring
|
11. Support
|
12. Declaration of Conformity
|
| Özellik | Açıklama |
|---|---|
| Ağ İzleme ve Görüntüleme | Smart Monitör |
| LAN Port Adeti | 5 Port |
| LAN Port Veri Hızı | 10/100/1000Mbps |
| LAN Port Tipi | Bakır Ethernet |
| Dual WAN | Outbound policy based Load balance, Bandwidth on Demand |
| WAN Port adeti | 2 Adet |
| WAN Port Veri Hızı | 10/100 Mbps |
| WAN Port Fiziksel Tipi | Ethernet |
| WAN Protokolleri | DHCP İstemci,Statik IP, PPPoE, PPTP, L2TP, BPA |
| SSL VPN | 50 adet SSL VPN Tunel |
| VPN Adeti | 200 Adet |
| VPN Kimlik Doğrulama | MD5, SHA-1 |
| VPN Protokol | PPTP, IPSec, L2TP, IPSec üzerinden L2TP |
| VPN Şifreleme | AES, MPPE ve donanım tabanlı DES/3DES |
| VPN Trunk | VPN Backup + VPN Balance |
| VoIP Desteği | Yok |
| Wireless | Yok |
| WPS Button | Yok |
| Uzak Yönetim | Telnet, Web, SSH |
| Firmware güncelleme | Var |
| Load Balance | Outbound Policy-based Load-balance |
| 3G Backup | Var |
| USB Arabirim Adeti | 1 Adet |
| USB Cihaz Desteği | USB printer or 3G USB Modem |
| Loglama | Router Tools,Syslog Tools |
| Smart Monitor | Var |
| Opsiyonel Port | Yok |
| Form Factor | 1U |
| Firewall Servisler | WEB Content Filter (Opsiyonel) |
| Firewall Özellikleri | SPI ( Stateful Packet Inspection ) ( Flow Track ), Object-based firewall,CSM (Content Security Management) for IM/P2P Application, Çoklu NAT, DMZ host, port yönlendirme/ port açma, DoS / DDoS prevention, IP address Anti-spoofing, E-mail alert and logging via syslog, Bind IP to MAC |
| Bantgenişliği Yönetimi | Traffic shaping, Bandwith reservation, Packet size control, DiffServ Codepoint Classifying, 4 Priority levels(inbound/outbound), Bandwidth Borrowed, user-defined class-based rules |
| Yönetim | Web Yönetim, UPnP (Basit Cihaz), SNMP: v1, v2, v2c, Ether Like MIB, MIB II, 802.11MIB , Watchdog Timer to WARM boot system |
| Anten | Yok |
| Harici Anten Desteği | Yok |
| Çevresel Standartlar | RoHS |
| Uyumlu Olduğu Standartlar | CE, FCC |
| Boyutlar (En/Boy/Yükseklik) | L273 * W166 * H44.6 ( mm ) |
| Dil Desteği | English |
| Ürünün Web Sayfası | http://www.draytektr.com |
| Satış Garanti Süresi (Ay) | 24 |
