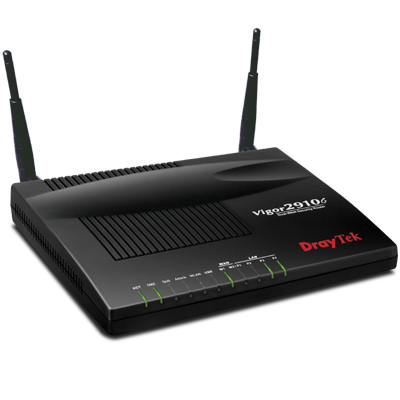

Draytek Vigor 2910G Broadband Router


Yeni nesil iki adet (Dual) WAN portu ile Load Balance yapabilir. ADSL, Kablo Internet, Metro veya Leased Line arkasında paylaşım ve Firewall özellikleri ile Ağ güvenlik sağlar. Cihaz üzerinde 32 adet VPN Tünel sonlandırılabilir.

Dual WAN Wireless VPN Load Balance Security Router Draytek Vigor2910G yeni nesil iki adet (Dual) WAN portu bulunan Load Balance yapabilen kurumsal kullanıcıların ihtiyaçlarına cevap verebilecek, ilave ve üstün özellikleri olan Wireless Security Gateway 'dir. BroadBand (ADSL, Kablo Internet veya Leased Line) Modem arkasında Internet erişiminizin paylaşımını ve Firewall özellikleri ile Ağ güvenliğiniz sağlar. USB portundan 3G bağlantı sağlayabilir. USB portuna takılabilecek 3G USB modem vasıtası ile ikinci WAN portu yedeklenebilir veya sadece 3G Router olarak kullanılabilir.

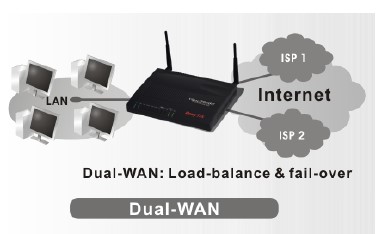

The Vigor2910 series provides a configurable second WAN interface and supports policy-based load-balancing and connection fail-over on dual-WAN interface. Except the QoS function for the original IP layer, it also supports NAT session/bandwidth management which increases the usage efficiency of bandwidth greatly.

It allows users to access Internet and combine the bandwidth of the dual WAN to speed up the transmission through the network. Each WAN port can connect to different ISPs, Even if the ISPs use different technology to provide telecommunication service (such as DSL, Cable modem, etc.). If any connection problem occurred on one of the ISP connections, all the traffic will be guided and switched to the normal communication port for proper operation.

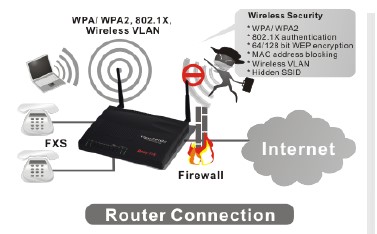

Wireless supports connection rate up to 108Mbps with Super G™ feature. In addition to WEP/WPA/WPA2 and MAC Address Control, the router also provides Wireless VLAN, 802.1X authentication and Wireless LAN isolation mechanism for the network security. The Flexible design of firewall function makes users configuring the policies of firewall more easily and conveniently.

1. Dual-WAN

  • Outbound Policy-Based Load-Balance
  • BoD (Bandwidth on Demand)
  • WAN Connection Fail-over

2. Wireless Access Point

  • IEEE802.11b/g Compliant
  • Super G™ 108Mbps
  • Wireless Client List
  • Access Point Discovery
  • WDS (Wireless Distribution System)
  • Wireless LAN Isolation
  • Wireless Station Rate-Control
  • WPA / WPA2
  • 64/128-bit WEP
  • 802.1X Authentication with RADIUS Client
  • Hidden SSID
  • MAC Address Access Control
  • Wireless VLAN

3. WAN Protocol

  • DHCP Client
  • Static IP
  • PPPoE
  • PPTP
  • BPA
  • L2TP

4. Firewall

  • CSM (Content Security Management) for IM/P2P Application
  • Multi-NAT, DMZ Host, Port-Redirection/Open Port
  • Policy-Based IP Packet Filter
  • DoS/DDoS Protection
  • IP Address Anti-Spoofing
  • E-Mail Alert and logging via Syslog
  • Bind IP to MAC Address

5. VPN

  • Up to 32 VPN Tunnels

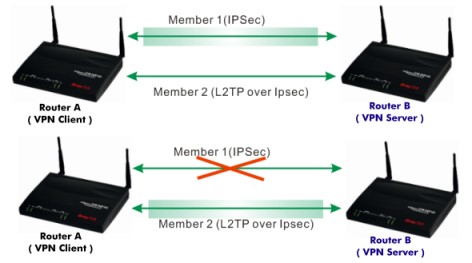

  • Protocol: PPTP, IPSec, L2TP, L2TP over IPSec
  • Encryption: AES, MPPE and Hardware-Based DES/3DES
  • Authentication: MD5, SHA-1
  • IKE Authentication: Pre-shared Key and Digital Signature (X.509)

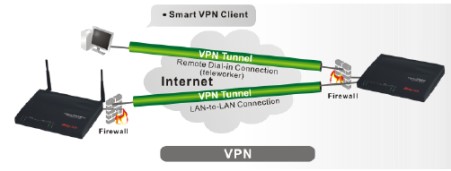

  • LAN-to-LAN, Teleworker-to-LAN
  • DHCP over IPSec
  • NAT-Traversal (NAT-T)
  • Dead Peer Detection (DPD)
  • VPN Pass-Through

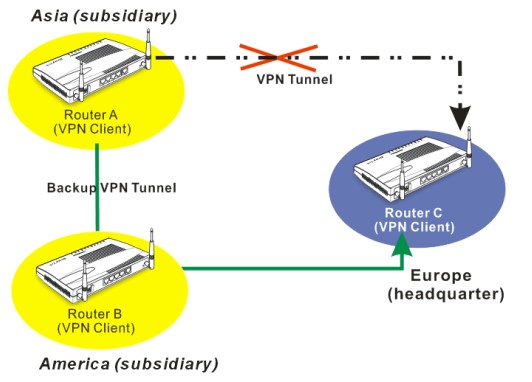

  • VPN Backup

6. USB

  • USB Printer

7. Bandwidth Management

  • Class-based Bandwidth Guarantee by User-Defined Traffic Categories
  • DiffServ Code Point Classifying
  • 4-level Priority for Each Direction (Inbound/Outbound)
  • Bandwidth Borrowed
  • Bandwidth/Session Limitation

8. Network Management

  • Support TR-069
  • Web-Based User Interface (HTTP/HTTPS)
  • Quick Start Wizard
  • CLI (Command Line Interface) / Telnet/SSH*
  • Administration Access Control
  • Configuration Backup/Restore
  • Built-in Diagnostic Function
  • Firmware Upgrade via TFTP/FTP
  • Logging via Syslog
  • SNMP Management with MIB-II

9. Content Filter

  • URL Keyword Blocking (White list and Black list)
  • Java Applet, Cookies, Active X, Compressed / Executable / Multimedia File Blocking
  • Web Content Filter
  • Time Schedule Control

10. Network Features

  • DHCP Client/Relay/Server
  • Dynamic DNS
  • NTP Client
  • Call Scheduling
  • RADIUS Client
  • DNS Cache/Proxy
  • UPnP
  • Port-Based VLAN
  • Configurable WAN2
  • Routing Protocol:
    • Static Routing
    • RIP V2
Özellik Açıklama
Ağ İzleme ve Görüntüleme Yok
Ağ Yönetimi TR-069 Management,Web-Based User Interface (HTTP/HTTPS), Quick Start Wizard, CLI (Command Line Interface, Telnet/SSH) ,Administration Access Control, Configuration Backup/Restore, Built-in Diagnostic Function, Firmware Upgrade via TFTP/FTP/HTTP/TR-069, Logging via Syslog, SNMP Management with MIB-II, Management Session Time Out, 2-level management (Admin/User Mode)
LAN Port Adeti 4 Port
LAN Port Veri Hızı 10/100Mbps
LAN Port Tipi Bakır Ethernet
Dual WAN Var
WAN Port adeti 2 Adet
WAN Arayüzü RJ-45
WAN Protokolleri DHCP İstemci,Statik IP, PPPoE, PPTP, L2TP, PPP
WAN Port Fiziksel Tipi Ethernet
SSL VPN Yok
VPN Adeti 32 Adet
VPN Kimlik Doğrulama MD5, SHA-1
VPN Protokol PPTP, IPSec, L2TP, IPSec üzerinden L2TP
VPN Şifreleme AES, MPPE ve donanım tabanlı DES/3DES
VoIP Desteği Yok
VoIP Port Adeti Yok
VoIP Arayüzü Yok
Desteklediği VoIP Codec Tipi Yok
Wireless
Yayın Gücü 20dBm(11b/g), South America: 26dBm (11b), South America: 20dBm (11g)
WPS Button Yok
Frekans Bandı USA (FCC) 11 Channels: 2.412GHz~2.462GHz, Europe (ETSI) 13 Channels : 2.412GHz~2.472GHz
Wireless Protokolleri 802.11b/g
Uzak Yönetim Telnet, Web, SSH, Vigor ACS SI
Firmware güncelleme Var
Load Balance Outbound Policy-based Load-balance, BoD ( Bandwidth on Demand ), WAN Connection Fail-over
USB Arabirim Adeti 1 Adet
USB Cihaz Desteği 3.5G USB Modem,USB Printer,USB Flash Disk,USB external Storage,
3G Backup Var
Smart Monitor Yok
Loglama 5651 Sayılı Kanuna Uygun Loglama(Opsiyonel Ücretli)
RackMount Aparat (Opsiyonel) Yok
Opsiyonel Port Yok
Form Factor Desktop
Firewall Servisler WEB Content Filter (Opsiyonel)
Firewall Özellikleri CSM (Content Security Management) for IM/P2P Application, Çoklu NAT, DMZ host, port yönlendirme/ port açma, SPI(Stateful Packet Inspection)Dinamik Paket İnceleme, DoS/DDos Önleme
QoS Özelllikleri Yok
Yazıcı Sunucu Desteği Var
Yönetim Web Yönetim, UPnP (Basit Cihaz), SNMP: v1, v2, v2c, Ether Like MIB, MIB II, 802.11MIB , Watchdog Timer to WARM boot system
FTP Sunucu Desteği Var
Güvenlik MAC Address Erişim Kontrolü, 64/128bit WEP, WPA, WPA2, 802.11x Authentication.
Anten 2 adet 3 dBi Omni Anten
Harici Anten Desteği Var
Uyumlu Olduğu Standartlar FCC Class B, CE Class B, BSMI Class B
Çevresel Standartlar RoHS
Boyutlar (En/Boy/Yükseklik) L220 * W160 * H36 (mm)
Dil Desteği English
Ürünün Web Sayfası http://www.draytektr.com
Satış Garanti Süresi (Ay) 24
VPN Trunk VPN Backup
