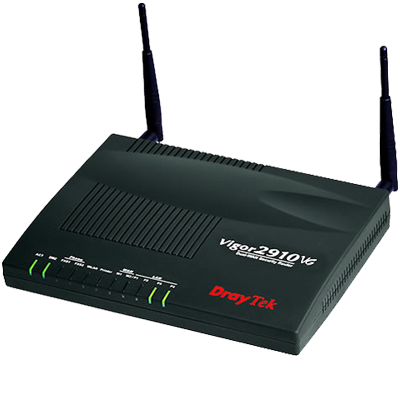

Draytek Vigor 2910VG Broadband Router

Draytek Vigor 2910VG Broadband Router

İki adet WAN portu ile Load Balance yapabilen, Wireless ve VoIP özellikleri olan ağ geçididir. 2 Anten, 4 LAN portu, 2 WAN portu ve 2 FXS portu mevcuttur. 32 adet VPN tünel sonlandırabilir. USB portuna bağlanabilecek 3G HSDPA modem ile WAN backup sağlar.

Dual WAN Wireless VoIP VPN Load Balance Security Router Draytek Vigor2910VG yeni nesil iki adet (Dual) WAN portu ile Load Balance yapabilen, kurumsal kullanıcı ihtiyaçlarına cevap verebilecek, Wireless ve VoIP özellikleri bulunan üstün bir güvenlik ağ geçididir. Üzerinde 2 adet anten ve 2 adet FXS VoIP Portu mevcuttur. 32 adet VPN tünel kurabilir.

The Vigor2910 series provides a configurable second WAN interface and supports policy-based load-balancing and connection fail-over on dual-WAN interface. Except the QoS function for the original IP layer, it also supports NAT session/bandwidth management which increases the usage efficiency of bandwidth greatly.

Voice-over-IP(VoIP) is extensively supported with providing two separate phone ports and multiple SIP registrars with highly flexible configuration and call handling options.

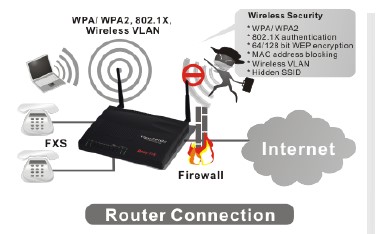

Wireless supports connection rate up to 108Mbps with Super G™ feature. In addition to WEP/WPA/WPA2 and MAC Address Control, the router also provides Wireless VLAN, 802.1X authentication and Wireless LAN isolation mechanism for the network security. The Flexible design of firewall function makes users configuring the policies of firewall more easily and conveniently.

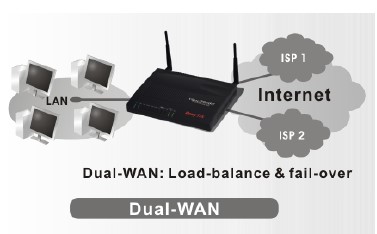

1. Dual-WAN

  • Outbound Policy-Based Load-Balance
  • BoD (Bandwidth on Demand)
  • WAN Connection Fail-over

2. VoIP

  • Protocol : SIPv2 (RFC3261), RTP / RTCP
  • Six SIP Registrars
  • G.168 Line Echo-Cancellation
  • Automatic Gain Control
  • Jitter Buffer (125ms)
  • Codec Feature:
    • G.711 A/µ Law
    • G.723.1
    • G.726
    • G.729 A/B
    • VAD / CNG
  • Tone Generation and Detection : DTMF, Dial, Busy, Ring Back, Call Progress
  • FAX / Modem Support :
    • G.711 Pass-through
    • T.38 for FAX
  • Supplemental Services :
    • Call Hold / Retrieve
    • Call Waiting
    • Call Transfer
    • Call Forwarding (Always, Busy and No Answer)
    • DND (Do not Disturb)
    • Hotline

3. Wireless Access Point

  • IEEE802.11b/g Compliant
  • Super G™ 108Mbps
  • Wireless Client List
  • Access Point Discovery
  • WDS (Wireless Distribution System)
  • Wireless LAN Isolation
  • Wireless Station Rate-Control
  • WPA / WPA2
  • 64/128-bit WEP
  • 802.1X Authentication with RADIUS Client
  • Hidden SSID
  • MAC Address Access Control
  • Wireless VLAN

4. WAN Protocol

  • DHCP Client
  • Static IP
  • PPPoE
  • PPTP
  • BPA
  • L2TP

5. Firewall

  • CSM (Content Security Management) for IM/P2P Application
  • Multi-NAT, DMZ Host, Port-Redirection/Open Port
  • Policy-Based IP Packet Filter
  • DoS/DDoS Protection
  • IP Address Anti-Spoofing
  • E-Mail Alert and logging via Syslog
  • Bind IP to MAC Address

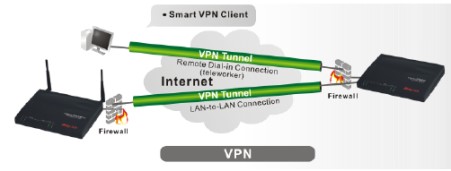

6. VPN

  • Up to 32 VPN Tunnels
  • Protocol: PPTP, IPSec, L2TP, L2TP over IPSec
  • Encryption: AES, MPPE and Hardware-Based DES/3DES
  • Authentication: MD5, SHA-1
  • IKE Authentication: Pre-shared Key and Digital Signature (X.509)
  • LAN-to-LAN, Teleworker-to-LAN
  • DHCP over IPSec
  • NAT-Traversal (NAT-T)
  • Dead Peer Detection (DPD)
  • VPN Pass-Through

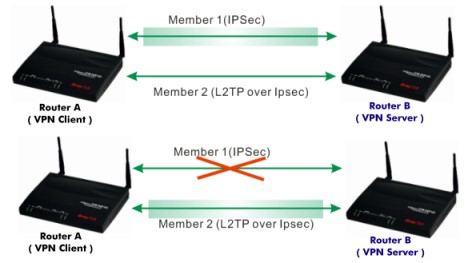

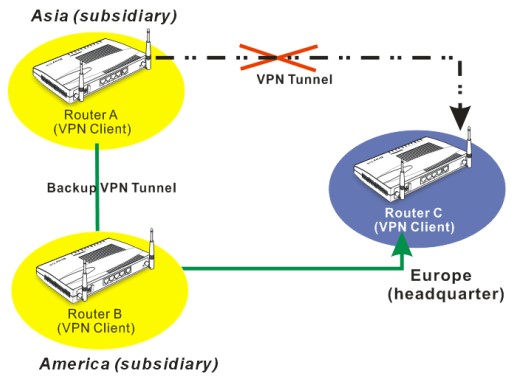

  • VPN Backup

7. USB

  • 3G USB Modem (3G only can act as WAN2)
  • USB Printer

8. Bandwidth Management

  • Guarantee Bandwidth for VoIP
  • Class-based Bandwidth Guarantee by User-Defined Traffic Categories
  • DiffServ Code Point Classifying
  • 4-level Priority for Each Direction (Inbound/Outbound)
  • Bandwidth Borrowed
  • Bandwidth/Session Limitation

9. Network Management

  • Support TR-069
  • Web-Based User Interface (HTTP/HTTPS)
  • Quick Start Wizard
  • CLI (Command Line Interface) / Telnet/SSH*
  • Administration Access Control
  • Configuration Backup/Restore
  • Built-in Diagnostic Function
  • Firmware Upgrade via TFTP/FTP
  • Logging via Syslog
  • SNMP Management with MIB-II

10. Content Filter

  • URL Keyword Blocking (White list and Black list)
  • Java Applet, Cookies, Active X, Compressed / Executable / Multimedia File Blocking
  • Web Content Filter
  • Time Schedule Control

11. Network Features

  • DHCP Client/Relay/Server
  • Dynamic DNS
  • NTP Client
  • Call Scheduling
  • RADIUS Client
  • DNS Cache/Proxy
  • UPnP
  • Port-Based VLAN
  • Configurable WAN2
  • Routing Protocol:
    • Static Routing
    • RIP V2
Özellik Açıklama
Ağ İzleme ve Görüntüleme Yok
Ağ Yönetimi TR-069 Management,Web-Based User Interface (HTTP/HTTPS), Quick Start Wizard, CLI (Command Line Interface, Telnet/SSH) ,Administration Access Control, Configuration Backup/Restore, Built-in Diagnostic Function, Firmware Upgrade via TFTP/FTP/HTTP/TR-069, Logging via Syslog, SNMP Management with MIB-II, Management Session Time Out, 2-level management (Admin/User Mode)
LAN Port Adeti 4 Port
LAN Port Veri Hızı 10/100Mbps
LAN Port Tipi Bakır Ethernet
Dual WAN Yok
WAN Port adeti 4 Adet
VLAN Var
WAN Arayüzü RJ-45
WLAN Var
WAN Protokolleri DHCP İstemci,Statik IP, PPPoE, PPTP, L2TP, PPP
WAN Port Fiziksel Tipi Ethernet
SSL VPN Yok
VPN Adeti 32 Adet
VPN Kimlik Doğrulama MD5, SHA-1
VPN Protokol PPTP, IPSec, L2TP, IPSec üzerinden L2TP
VPN Şifreleme AES, MPPE ve donanım tabanlı DES/3DES
VoIP Desteği Yok
VoIP Port Adeti Yok
VoIP Arayüzü Yok
Desteklediği VoIP Codec Tipi Yok
Wireless
Yayın Gücü 20dBm(11b/g), South America: 26dBm (11b), South America: 20dBm (11g)
WPS Button Yok
Frekans Bandı USA (FCC) 11 Channels: 2.412GHz~2.462GHz, Europe (ETSI) 13 Channels : 2.412GHz~2.472GHz
Wireless Protokolleri 802.11b/g
Uzak Yönetim Telnet, Web, SSH, Vigor ACS SI
Firmware güncelleme Var
Load Balance Outbound Policy-based Load-balance, BoD ( Bandwidth on Demand ), WAN Connection Fail-over
USB Arabirim Adeti 1 Adet
USB Cihaz Desteği 3.5G USB Modem,USB Printer,USB Flash Disk,USB external Storage,
3G Backup Var
Smart Monitor Yok
Loglama 5651 Sayılı Kanuna Uygun Loglama(Opsiyonel Ücretli)
RackMount Aparat (Opsiyonel) Yok
Opsiyonel Port Yok
Form Factor Desktop
Firewall Servisler WEB Content Filter (Opsiyonel)
Firewall Özellikleri CSM (Content Security Management) for IM/P2P Application, Çoklu NAT, DMZ host, port yönlendirme/ port açma, SPI(Stateful Packet Inspection)Dinamik Paket İnceleme, DoS/DDos Önleme
QoS Özelllikleri Class-based Bandwidth Guarantee by User-defined Traffic Categories,DiffServ Code Point Classifying ,4-level Priority for Each Direction (Inbound/Outbound),Bandwidth Borrowed
Yazıcı Sunucu Desteği Var
Yönetim Web Yönetim, UPnP (Basit Cihaz), SNMP: v1, v2, v2c, Ether Like MIB, MIB II, 802.11MIB , Watchdog Timer to WARM boot system
FTP Sunucu Desteği Var
Güvenlik MAC Address Erişim Kontrolü, 64/128bit WEP, WPA, WPA2, 802.11x Authentication.
Anten 2 adet 3 dBi Omni Anten
Harici Anten Desteği Var
Uyumlu Olduğu Standartlar FCC Class B, CE Class B, BSMI Class B
Çevresel Standartlar RoHS
Boyutlar (En/Boy/Yükseklik) L220 * W160 * H36 (mm)
Dil Desteği English
Ürünün Web Sayfası http://www.draytektr.com
Satış Garanti Süresi (Ay) 24
VPN Trunk VPN Backup
