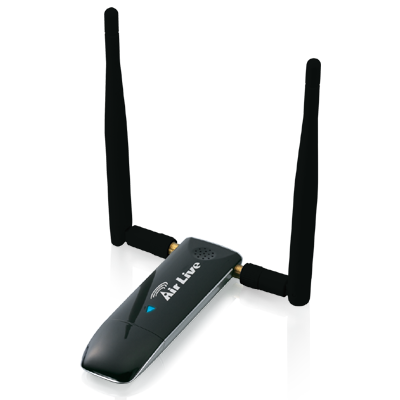

AirLive X.USB-3 11a/b/g/n 300Mbps Dual Band USB Adaptör (Değiştirilebilir 2 adet 3 dBi Anten). Hem 2.4Ghz, hem de 5Ghz çalışabilen yüksek güçlü USB Wireless Adaptör. 3dBi değiştirilebilir 2 adet anten ile yüksek çekim alanı. Yazılımsal AP fonksiyonu ile iki cihaz arasında AP kullanmadan transfer imkanı. Fabrika, Kampüs, Tatil Köyü ve benzeri geniş alanlarda en iyi çekim gücü ile kolay erişim sağlar. 2T2R, Windows ve Linux uyumlu, Atheros Chipsetli ve çok küçük boyutludur.

Özellikler

Standards
- IEEE 802.11n
- IEEE 802.11a
- IEEE 802.11g
- IEEE 802.11b

Antenna
- 2 x R-SMA Connector
- Model X.USB-3: 2 x 3dBI antennas
- Model X.USB: Antenna not included

Frequency Range
- 802.11g/b: 2.400GHz~2.4835GHz
- ETSI: 802.11a: 5.470 to 5.725 GHz
- USA: 802.11a: 5.725 to 5.825 GHz

Hardware
- Chipset: Atheros 11a/b/g/n USB
- Interface: USB 2.0

Modulation Technique
- Orthogonal frequency division multiplexing (OFDM)
- Direct Sequence Spread Spectrum (CCK,DQPSK,DBPSK)

Security
- 64/128bit WEP, WPA, WPA2, 802.1x and 802.11i

Media Access Protocol
- CSMA/CA (Collision Avoidance) with ACK

Output Power
- 20dBm

Data Rate
- 11g: 54, 48, 36, 24, 18, 12, 9 and 6Mbps with auto rate fall back
- 11b: 11, 5.5, 2, and 1Mbps with auto-rate fall back
- 11a: 54, 48, 36, 24, 18, 12, 9 and 6Mbps with auto - 802.11n
- 20 MHz BW(LGI): 65, 58.5, 52, 39, 26, MAYIS.5, 13, 6.5
- 40 MHz BW(LGI): 135, 121.5, 108, 81, 54, 40.5, 27,13.5
- 20 MHz BW(SGI): 72.2, 65, 57.8, 43.3, 28.9, 21.7,14.4, 7.2
- 40 MHz BW(SGI): 150, 135, 120, 90, 60, 45, 30, 15

Max Receiver Sensitivity
- 2.4GHz: -91dB
- 5GHz: -92dB

Working Mode
- Ad-Hoc or Infrastructure

Host Interface
- A-Type USB 2.0 connector

Operating Temperature
- 0~55℃ ambient temperature

Storage Temperature
- 20~70℃ ambient temperature

Power Consumption
- Continuous transmission mode: 290mA at 5VDC (Max.)

Operating & Storage Humidity
- 90% maximum (non-condensing)

Operating System Support
- Windows® XP/VISTA/7, Linux Certifications
- CE FCC

Product Weight (g)
- 20g

Product Size ( L x W x H (mm) )
- 98 x 28 x 12 mm
