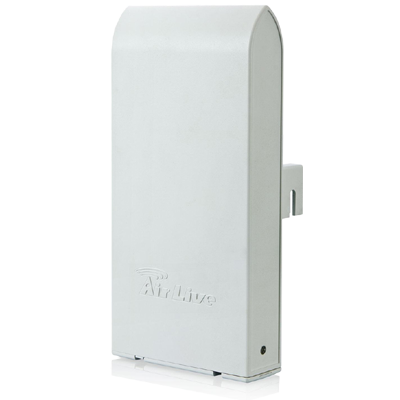

OutDoor 108Mbps Wireless CPE çok yüksek güçlü dış mekan kullanım için tasarlanmış bir kablosuz erişim noktasıdır. 14dBi anten, 23dBi Çıkış Gücü, Anten Ayar Ledi, R-SMA Harici Anten Çıkışı, 12V Pasif PoE, Temiz Sinyal Teknolojisi, AP, Bridge, Client, Router, Repeater, WISP modları desteği ve Bantgenişliği Kontrol, Site Survey yetenekleri ile eşsiz kaliteye sahip CPE cihazı. Üzerinde entegre bulunan anten ile 20Km mesafeye kadar yüksek performans sağlar, istenirse daha yüksek kazançlı harici anten ile daha yüksek mesafelerde çalışabilir. 5/10/20/40Mhz SüperKanal Desteğine sahiptir.

Özellikler

Standard
- 802.11a/Super A/Turbo-A mode support (Atheros Proprietary)
- RoHS compliant
- Supports One 10/100 Mbps LAN
- Auto MDI/MDI-X support
- 8MB Flash, 32MB SDRAM
- 12V Passive PoE (accept up to 22V)
- 802.11h compatible

Antenna
- Integrated 13 dBi patch directional antenna
- 30 degree horizontal and vertical antenna coverage with built-in antenna.
- Vertical, Horizontal, Diversity Polarizations
- R-SMA connector for external antenna

Frequency Band
- ETSI: 802.11a: 5.470 to 5.725 GHz
- USA: 802.11a: 5.725 to 5.825 GHz
- Super Channels: 802.11a: 4.9 GHz and 6.1GHz

Power Supply
- Power Adapter Voltage : input 100~240Vac/50~60Hz , output 12V/1A
- Advance Passive PoE (Accept 12 to 22 volts)
- POE Adapter, DC Injector provided
- POE port built-in on the PCB

Transmission Rates
- 802.11a Data Rate : 6, 9, 12, 18, 24, 36, 48,54Mbps
- Super-A Data Rate : 108Mbps
- Turbo-A Data Rate : 108Mbps

Modulation Technology
- 802.11a Orthogonal Frequency Division Multiplexing (OFDM)

Output Power
- 54 Mbps @ 21dBm
- 48 Mbps @ 22dBm
- 36 Mbps @ 23dBm
- 6, 9, 12, 18, 24 Mbps @ 23 dBm

RSSI
- 6Mbps @ -90 dBm
- 9Mbps @ -89 dBm
- 12Mbps @ -88 dBm
- 18Mbps @ -86 dBm
- 24Mbps @ -82 dBm
- 36Mbps @ -79 dBm
- 48Mbps @ -73 dBm
- 54Mbps @ -71 dBm

Mode
- Support Client Mode, AP Mode, WDS Bridge Mode, Repeater Mode, Bridge Infrastructure, AP Router and WISP Router Software
- Site Survey with RSSI Signal Survey
- Web, Telnet, HTTPS, SSH, SSH2 Management
- Lock-to-AP List function
- 5MHz, 10MHz, 20MHz, 40MHz Channel Width
- Super Channels support
- Total Bandwidth and Per-User Bandwidth Management
- Channel List Selection
- Noise Immunity
- Multiple SSID and Tag VLAN
- QoS (802.11e WMM)
- Wi-Fi, WPA compatible interoperability
- WPA with PSK/TKIP/AES support ,WPA2 support
- Privacy Separator support
- SNMP v1/v2 support
- Support adjustable output power
- Comply with DFS II
- 152-bit WEP support (Atheros Proprietary)
- Super A mode support (Atheros Proprietary)
- Turbo A mode support (Atheros Proprietary)
- ACK Timeout Adjustment
- WEP over WDS support
- Bootloader Protection and Emergency Firmware Upload Code
- Radius Supported
- Firmware upgrade and configuration backup via Web

Certificate
- FCC, CE

Product Size ( L x W x H (mm) )
- 210 x 100 x 32 mm
