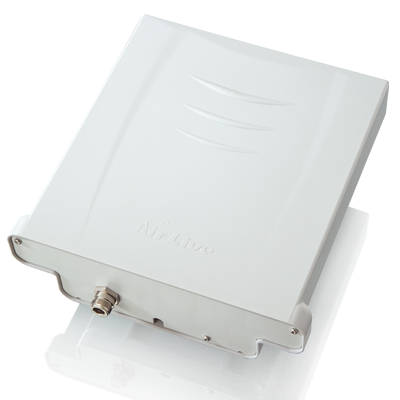

OutDoor 5Ghz Wireless CPE çok yüksek kapsama alanlı dış mekan kullanımiçin tasarlanmış bir kablosuz erişim noktasıdır. 18dBi anten, Temiz Sinyal Teknolojisi, AP, Bridge, Client, Router, Repeater, WISP modları desteği ve Bantgenişliği Kontrol, Site Survey yetenekleri ile eşsiz kaliteye sahip CPE cihazı. Üzerinde entegre bulunan anten ile 25Km mesafeye kadar yüksek performans sağlar.

Özellikler

Standard
- 802.11a/Super A mode support (Atheros Proprietary)
- 802.11h TPC and DFS
- RoHS compliant
- Supports One 10/100 Mbps LAN
- Auto MDI/MDI-X support
- 4MB Flash, 32MB SDRAM
- IEEE 802.3af (PoE) compliance up to 100 meters of CAT 5 cable length

Antenna
- Integrated 18 dBi patch directional antenna
- HPBW/Horizontal :13.5° - 15.5°
- HPBW/vertical :13° - 16°

Frequency Band
- ETSI: 802.11a: 5.470 to 5.725 GHz
- USA: 802.11a: 5.725 to 5.825 GHz

Power Supply
- External Power Adapter : input 100~240Vac/50~60Hz , output 5.5V/2.5A
- Power over Ethernet (802.3af), up to 100 meters of CAT 5 cable
- POE Adapter, DC Injecter provided
- POE port built-in on the PCB Transmission Rates
- IEEE802.11b: 1/2/5.5/11Mbps
- IEEE802.11g: 6/9/12/18/24/36/48/54MbpsI

Modulation Technology
- 802.11a Orthogonal Frequency Division Multiplexing (OFDM)
- 802.11a Data Rate : 6, 9, 12, 18, 24, 36, 48, 54Mbps

Output Power
- 54 Mbps @ 17dBm
- 48 Mbps @ 18dBm
- 36 Mbps @ MAYISdBm
- 6, 9, 12, 18, 24 Mbps @ 20 dBm
- 36 Mbps @ 20 dBm
- 6, 9, 12, 18, 24 Mbps @ 20 dBm

RSSI
- 6Mbps @ -95 dBm
- 9Mbps @ -90 dBm
- 12Mbps @ -88 dBm
- 18Mbps @ -86 dBm
- 24Mbps @ -82 dBm
- 36Mbps @ -79 dBm
- 48Mbps @ -73 dBm
- 54Mbps @ -71 dBm

Software
- Support Client Mode, AP Mode, Bridge Infrastructure, WDS Bridge Mode, Repeater Mode, WISP Router, AP Router modes
- 40MHz, 20MHz, 10MHz, and 5MHz Channel Width
- Super Channels support
- Super A mode support (Atheros Proprietary)
- Turbo A mode support (Atheros Proprietary)
- Site Survey and Signal Survey functions
- Lock-to-AP Priority List
- Multiple SSID and VLAN
- Total, IP/MAC, and Application Bandwidth Control
- 8 WDS Entries
- QoS (802.11e WMM)
- WPA with PSK/TKIP/AES support, WPA2 support
- Privacy Separator support
- Firewall, Static Route, Virtual Server, DMZ, URL

Control
- Support adjustable output power
- Comply with DFS II
- 152-bit WEP support (Atheros Proprietary)
- ACK Timeout Adjustment
- DHCP Server and Client
- Wireless access control by MAC address (deny or accept)
- HTTPS, HTTP, and Telnet Management
- Firmware upgrade and configuration backup via Web
- Bootloader Protection and Emergency Firmware Repair

Dimension
- Polarization : Linear, vertical

Certificate
- CE

Product Weight (g)
- 1105 g

Product Size( L x W x H (mm) )
- 225 x 122 x 225 mm
