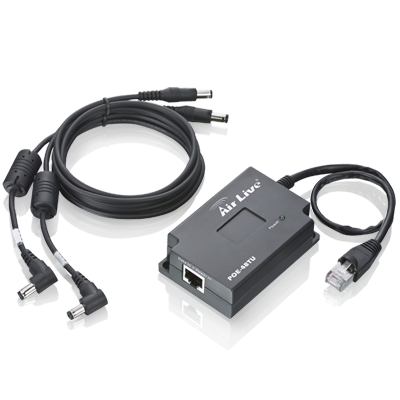

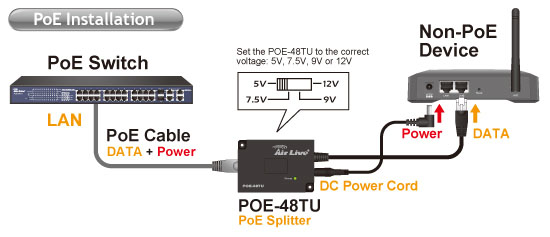

POE özelliği bulunmayan cihazlar için POE switch tarafından gelen güç beslemesini cihaza vermek için kullanılan splitter cihazıdır.

Özellikler

Standard
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3af Power over Ethernet

Interface
- Data In and Power In:
 - 1 x RJ-45
 - Data pin: 1,2,3,6
 - Power pin: 4,5(V+), 7,8(V-) and 1,2(V+), 3,6(V-)
- Data Out:
 - 1 x RJ-45
 - Data pin: 1,2,3,6
- Power Out:
 - 5V, 7.5V, 9V, 12V (switchable)
 - Maximum feeding current: 2.0A@5V

Power jack diameter
- 2 x power cable with straight plug and right angle plug
- Plug dimension: 5.5 x 2.0 mm, 5.5 x 2.5 mm,

Network cable
- 10Base-T: 2-pair UTP/STP Cat. 3,4,5 cable, EIA/ TIA-568 100-ohm (100m)
- 100Base-TX: 2-pair UTP/STP Cat. 5 cable, EIA/ TIA-568 100-ohm (100m)

LED indicator
- Power (green)

Power Input
- DC 48V

Operating Temperature
- 0°C - 40°C (32°F - 104°F)

Operating Humidity
- 10% ~ 90% (non-condensing)

EMI & Safety
- FCC Class B, CE, CE/EN60950

Dimensions
- 80 x 55 x 26 mm
