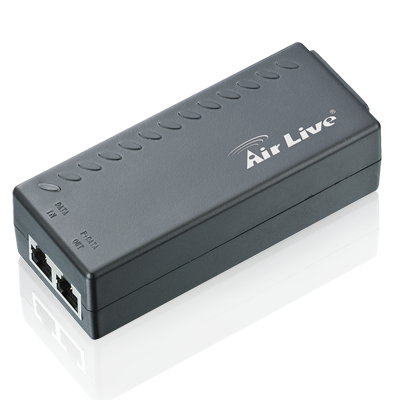

POE özelliği bulunan cihazlara, POE switch kullanılmadığı durumda güç sağlamak amacı ile kullanılır. Tek port POE switch olarak ta anılır.

Özellikler

Power output
- 48V, 0.4A
- Power pin: 4,5(V+), 7,8(V-)

Power input
- AC 90~264V, 47~63HZ
- 0.5A maximum
- Inrush current: 40A maximum

Data output
- Data pin: 1,2,3,6

Line regulation
- 2% maximum

Load regulation
- +5%

Ripple & Noise
- 1% typical

Efficiency
- 75~81% typical

Protection requirement
- Over-voltage Protection
- Short-circuit Protection

Reliability
- MTBF: 50000 Hours
- B-TEST: Vibration, Shock, Altitude, Static Compression, Drop

LED indicators
- Power: Green

Temperature
- Operating: 0°C - 40°C (32°F - 104°F)
- Storage: -20°C - 85°C (-4°F- 185°F)

Emission
- CE

Safety
- BSMI, LVD

Product Weight (g)
- 290 g

Dimensions
- 1MAYIS x 50 x 35 mm
