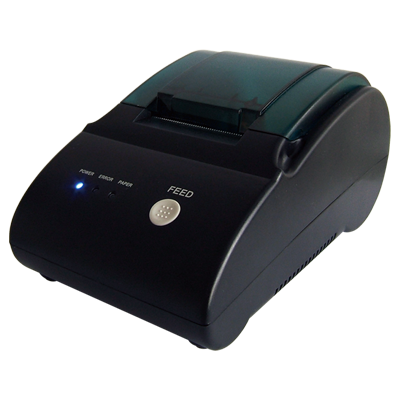

RS232 Console port arayüzüne sahip HotSpot ürünler için etiket yazıcı

Özellikler

Print Method
- Direct thermal

Paper Width
- 57.5 mm ± 03.5mm

Effective Print Width
- 48 mm

Print Speed
- Approx. 50 mm/sec or 14 lines/sec

Print Head
- Print density: 384 dots/line or 8 dots/mm
- Print dot space: 0.125mm
- Print life: 50 km
- Overheat suspension protection

Interface
- Dsub 25-pin female connector
- 9600 bps, none, 8bits, 1 stop bit
- RTS/CTS and Xon/Xoff protocol

LED Indicator
- Power: shows power on/off status
- Error: indicate the printer error
- Paper: indicate out of paper or printer cover is not close properly

Button
- Feed: to feed roll paper

ASCII Character
- 12 x 24 dots, 1.24 mm(W) x 3.00 mm (H)

Print Commands
- ESC/POS

Paper Type
- Thermal

Paper Parameters
- Width: 57.5 ± 0.5 mm
- Max. diameter: 55 mm
- Thickness: 53~60 g/m2

Power supply
- 8.8VDC / 3.5A

Temperature
- Operating: 0 to 50℃
- Storage: -10 to 50℃

Humidity
- Operating: 10% ~ 80% RH
- Storage: 10% ~ 90% RH

Produce Weight (g)
- 760 g

Dimensions
- 185 x 116 x 93
